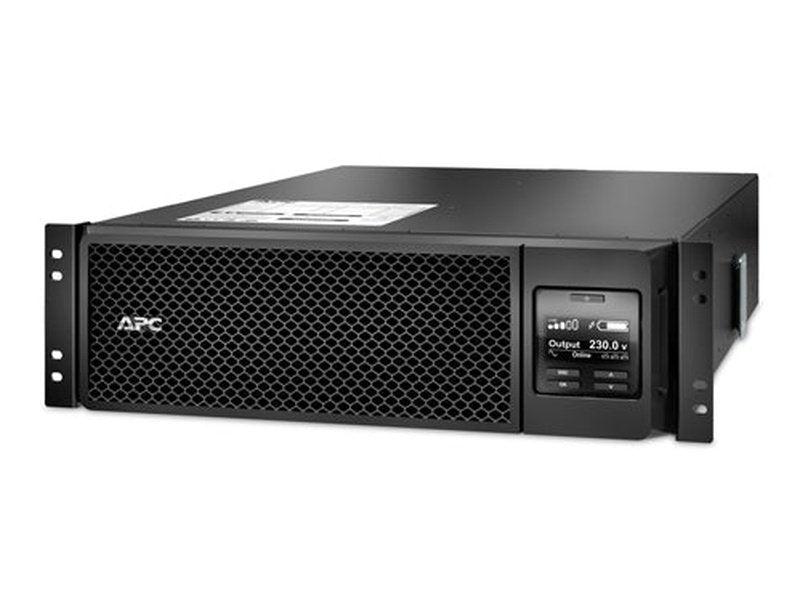

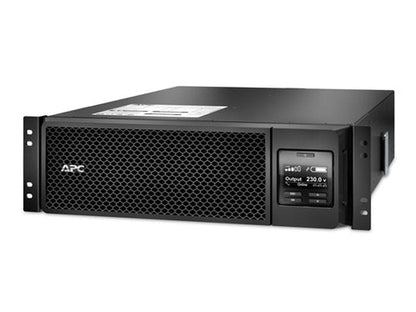

APC Smart-UPS SRT 5000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes : Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , Warranty card , Web/SNMP Management Card

• 10/100 BaseT Connection Connect the device to a network using a 10 or 100 BaseT connection
• Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.

Output

• Output power capacity 4.5 KWatts / 5.0 kVA
• Max Configurable Power (Watts) 4.5 KWatts / 5.0 kVA
• Nominal Output Voltage 230V
• Output Voltage Distortion Less than 2%
• Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
• Other Output Voltages 220, 240
• Load Crest Factor 3 : 1
• Topology Double Conversion Online
• Waveform type Sine wave

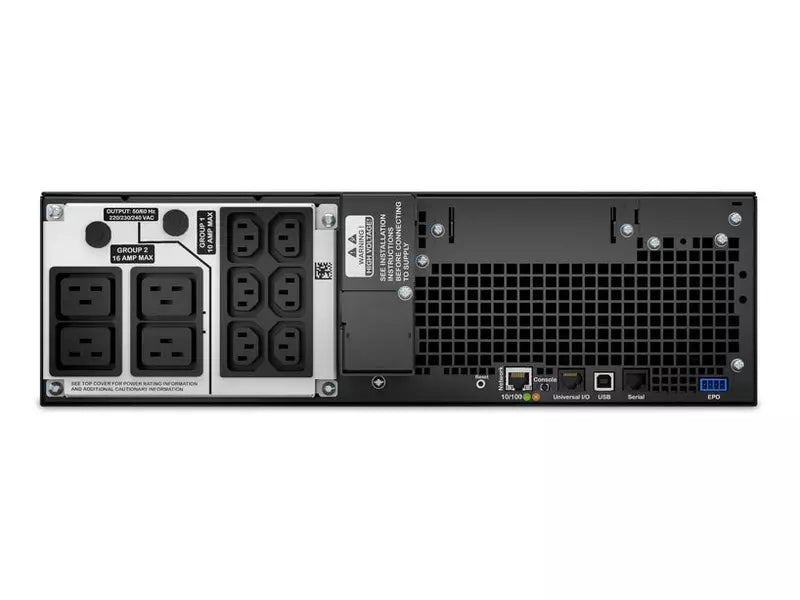

• Output Connections (6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (2) IEC Jumpers (Battery Backup)
• Bypass Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage 230V
• Input frequency 40 - 70 Hz (auto sensing)
• Input Connections Hard Wire 3 wire (1PH+N+G)
• Input voltage range for main operations 160 - 275V
• Input voltage adjustable range for mains operation 100 - 275 (half load)V
• Other Input Voltages 220, 240

Batteries & Runtime

• Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time 1.5hour(s)
• Replacement Battery APCRBC140
• Expected Battery Life (years) 3 - 5
• RBC Quantity 1
• Extendable Run Time 1
• Battery Volt-Amp-Hour Capacity 845
• Extended Run Options APC-Smart-UPS-SRT-5000VA-RM-230V
• Runtime View Runtime Graph View Runtime Chart
• Efficiency View Efficiency Graph

Communications & Management

• Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
• Control panel Multi-function LCD status and control console
• Audible Alarm Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO) Yes
• Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

• Surge energy rating 480Joules

Physical

• Maximum Height 130mm , 13.0cm
• Maximum Width 432mm , 43.2cm
• Maximum Depth 719mm , 71.94cm
• Rack Height 3U
• Net Weight 54.43kg
• Shipping weight 66.86kg
• Shipping Height 330mm , 33.0cm
• Shipping Width 610mm , 61.0cm
• Shipping Depth 960mm , 96.0cm
• Color Black
• Units per Pallet 6.0

Environmental

• Operating Environment 0 - 40 °C
• Operating Relative Humidity 0 - 95% non-condensing %
• Operating Elevation 0-3000meters
• Storage Temperature -15 - 45 °C
• Storage Relative Humidity 0 - 95% non-condensing %
• Storage Elevation 0-15000meters
• Audible noise at 1 meter from surface of unit 55.0dBA
• Online thermal dissipation 931.0BTU/hr
• Protection Class IP 20

Conformance

• Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU),
•  IRAM, RCM, VDE
• Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS Compliant
• REACH REACH: Contains No SVHCs
