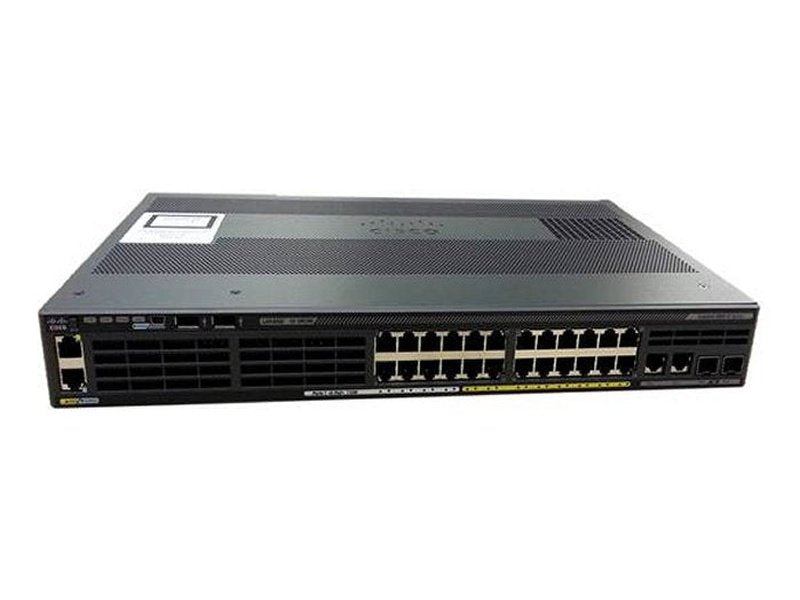

The Cisco Catalyst 2960-X Series adds a new member to its 2960-X family, the WS-C2960X-24PSQ-L. This is a 24-port 10M/100M/1000M switch that can power up to 8 ports of PoE with ability to deliver a sum total of 110W of PoE power. This switch has four Gigabit Ethernet uplinks: two of them SFP and the other two 10M/100M/1000M copper interfaces enabling choice of fiber or copper connectivity to the aggregation point.

Specifications

Brand Name:
- Cisco

Manufacturer Part Number:
- WS-C2960X-24PSQ-L

Manufacturer Website Address:
- http://www.cisco.com/c/en_au

Manufacturer:
- Cisco Systems, Inc

Product Line:
- Catalyst

Product Model:
- 2960X-24PSQ-L

Product Name:
- Catalyst 2960X-24PSQ-L Ethernet Switch

Product Series:
- 2960-X

Product Type:
- Ethernet Switch

Expansion Slot Type:
- SFP

Number of SFP Slots:
- 2

Number of Total Expansion Slots:
- 2

Bypass:
- No

LRE Port:
- No

Management Port:
- Yes

Modular:
- No

Number of Network (RJ-45) Ports:
- 20

Number of PoE (RJ-45) Ports:
- 3

Number of PoE+ (RJ-45) Ports:
- 3

Port/Expansion Slot Details:
- 2 x Gigabit Ethernet Expansion Slot
- 26 x Gigabit Ethernet Network

Token Ring Port:
- No

Total Number of Network Ports:
- 24

USB:
- Yes

Manageable:
- Yes

Management:
- Web-based Management
- VLAN
- QoS
- Syslog
- Telnet
- RMON I, II
- SNMP v1, v2c, v3
- DHCP
- CLI

Ethernet Technology:
- Gigabit Ethernet

Media Type Supported:
- Twisted Pair

Network Technology:
- 10/100/1000Base-T

Twisted Pair Cable Standard:
- Category 5

Flash Memory:
- 128 MB

Memory Technology:
- DRAM

Standard Memory:
- 512 MB

System Requirements:
- Disk space: 200 MB
- Hardware: PC with 1 GHz
- Memory: 1 GB
- PC hardware: 1 GHz
- Screen Resolution: 1024 x 768

Operating Systems:
- Windows 2000 Professional (Service Pack 4 or later)
- Windows 2003 Server
- Windows XP Professional (Service Pack 2 or later)
- Windows Vista Ultimate
- Windows 7
- Macintosh OS X

Layer Supported:
- 3

Depth:
- 368.3 mm

Form Factor:
- Rack-mountable

Height:
- 44.5 mm

Weight (Approximate):
- 5.81 kg

Width:
- 444.5 mm

Input Voltage:
- 110 V AC
- 220 V AC

PoE (RJ-45) Port:
- Yes

Power Source:
- Power Supply

Redundant Power Supply Supported:
- Yes
- Reliability

MTBF:
- 462680 Hour
