OVERVIEW

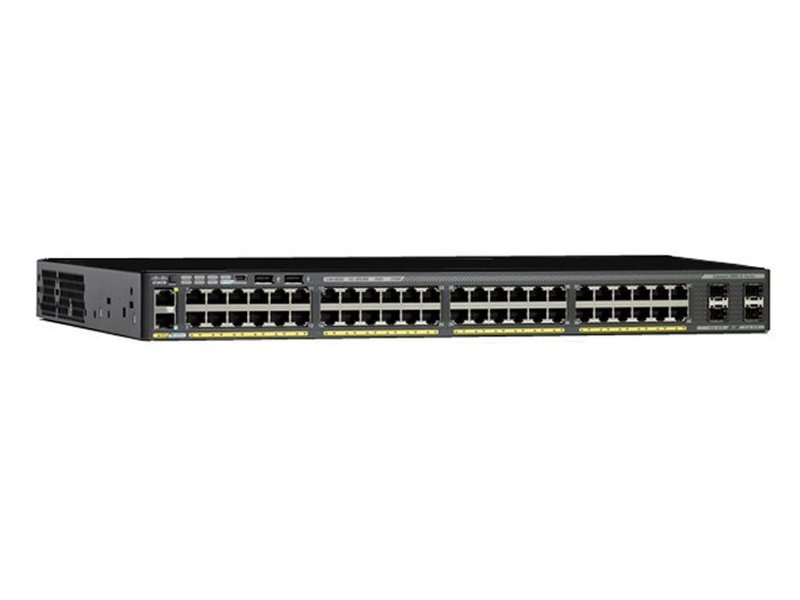

Catalyst 2960-X series Software FeaturesAll Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.

SPECIFICATIONS

Expansion Slot Type:
SFP+

Number of SFP+ Slots:
2

Number of Total Expansion Slots:
2

Bypass:
No

LRE Port:
No

Management Port:
Yes

Modular:
No

Number of PoE (RJ-45) Ports:
48

Port/Expansion Slot Details:
10 Gigabit Ethernet

Token Ring Port:
No

Total Number of Network Ports:
48

USB:
Yes

Manageable:
Yes

Management:
Web-based Management
VLANbr>QoS
Syslog
Telnet
RMON I, II
SNMP v1, v2c, v3
DHCP
CCLI

Ethernet Technology:
10 Gigabit Ethernet

Media Type Supported: br>Twisted Pair

Network Technology:
10/100/1000Base-T

Twisted Pair Cable Standard:
Category 5

Flash Memory:
128 MB

Memory Technology:
DRAM

Standard Memory:
512 MB

Layer Supported:
2

Compatible Rack Unit:
1U

Depth:
368.3 mm

Form Factor:
Rack-mountable

Height: 4
4.5 mm

Weight (Approximate):
5.85 kg

Width:
444.5 mm

Input Voltage:
110 V AC
220 V AC

PoE (RJ-45) Port:
Yes

Power Source:
Power Supply

Redundant Power Supply Supported:
Yes

MTBF:
233370 Hour
