OVERVIEW

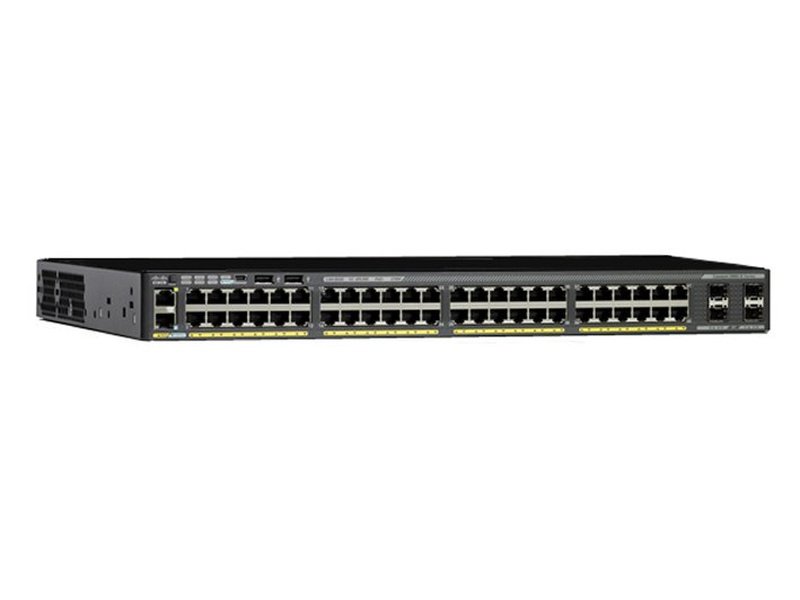

The Cisco Catalyst 2960-X Series provides a direct replacement for each Catalyst 2960-S Series Gigabit Ethernet model, at the same price. The Catalyst 2960-X provides better architecture, features, and performance than the 2960-S, doubling the feature set. Customers for the Catalyst 2960-SF Fast Ethernet switches should also consider moving to the 2960-X switches, which provide the features of the Catalyst 2960-SF and more, including PoE Plus (PoE+), improved IPv6 performance, and optional StackWise stacking. The 2960-X PoE models have a premium of approximately 20 to 25 percent over the 2960-SF Series.

SPECIFICATIONS

Product Series
2960-X

Product Type
Ethernet Switch

Expansion Slot Type
SFP

Number of SFP Slots
4

Number of Total Expansion Slots
4

Bypass
No

LRE Port
No

Management Port
Yes

Modular
Yes

Number of PoE (RJ-45) Ports
48

Port/Expansion Slot Details
Gigabit Ethernet

Token Ring Port
No

Total Number of Network Ports
48

USB
Yes

Manageable
Yes

Management
Web-based Management
CLI
Telnet
Syslog
MIB
QoS
VLAN
DHCP
RMON 1, 2, 3, 9
SNMP v1, v2c, v3

Ethernet Technology
Gigabit Ethernet

Media Type Supported
Optical Fiber

Network Technology
10/100/1000Base-T

Twisted Pair Cable Standard
Category 5

Flash Memory
128 MB

Memory Technology
DRAM

Standard Memory
512 MB

Layer Supported
2

Depth
444.5 mm

Form Factor
Rack-mountable

Height
44.5 mm

Weight (Approximate)
5.85 kg

Width
368.3 mm

Input Voltage
110 V AC
220 V AC

PoE (RJ-45) Port
Yes

Power Source
Power Supply

Redundant Power Supply Supported
Yes
