Overview

Built for Security, IoT, Mobility, and Cloud

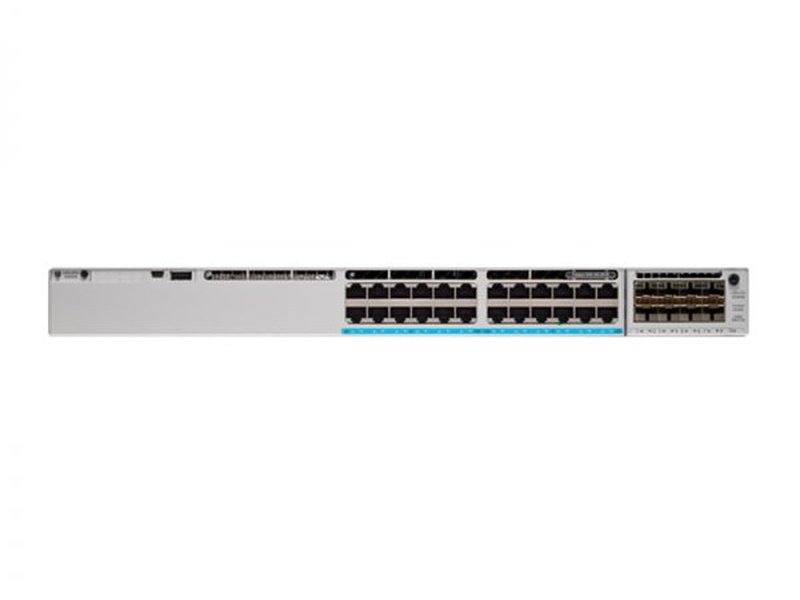

The Cisco® Catalyst® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® virtual technology, providing flexible deployment with support for nonstop forwarding with stateful switchover (NSF/SSO), for the most resilient architecture in a stackable sub-50-ms solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, open Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

Specifications

Product Type	Ethernet Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet
Product Family	Catalyst 9300
Stack Port	Yes
Media Type Supported	Twisted Pair
Total Number of Network Ports	24
Redundant Power Supply Supported	No
Form Factor	Rack-mountable
Power Source	Power Supply
Layer Supported	2
Environmentally Friendly	Yes
Environmental Certification	RoHS-5
Modular	No
Uplink Port	Yes
Port / Expansion Slot Details	24 x Gigabit Ethernet Network
Height	1.7"
Width	17.5"
Depth	17.5"
Product Series	9300
Product Model	C9300-24UX
Network Technology	10/100/1000Base-T
Product Line	Catalyst
