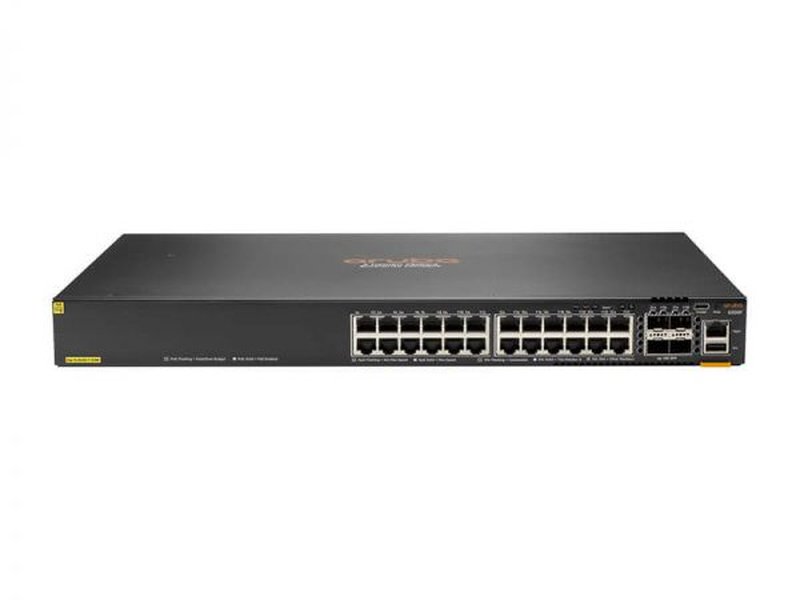

Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch [JL725A]

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.

Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and wireless APs.

What's New

• Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
• Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
• Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
• Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
• Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
• Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Specifications

Feature	Description
Differentiator	Next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. 24x 10/100/1000BASE-T and 4x 1/10G SFP ports with 370W of available Class 4 PoE power.
Power Consumption	65W at 230 VAC
Input Voltage	100V-120V / 200V-240V
Ports	- 24x 10/100/1000BASE-T Class 4 PoE ports<br> - 4x 1/10G SFP ports<br> - 1x USB-C Console Port<br> - 1x OOBM<br> - 1x USB Type-A Host port<br> - 1x Bluetooth Adapter to be used with Aruba CX Mobile App
PoE Standards	IEEE 802.3af, 802.3at
Latency	- 1 Gbps: 2.28 μSec<br> - 10 Gbps: 1.46 μSec
Routing/Switching Capacity	128 Gbps
Stacking Capabilities	8 members
Throughput	Up to 95.2 Mpps
Memory and Processor	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power Supply Name	Fixed power supply (500W)
PoE Capability	Up to 370W of Class 4 PoE power
Warranty	Limited Lifetime Warranty, see Aruba Product Warranties for warranty and support information included with your product purchase
Detailed Product Description	- Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch<br> - Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame<br> - Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame<br> - Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver<br> - 1U - Height
Weight	4.90 kg (10.80 lbs)
Dimensions	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
