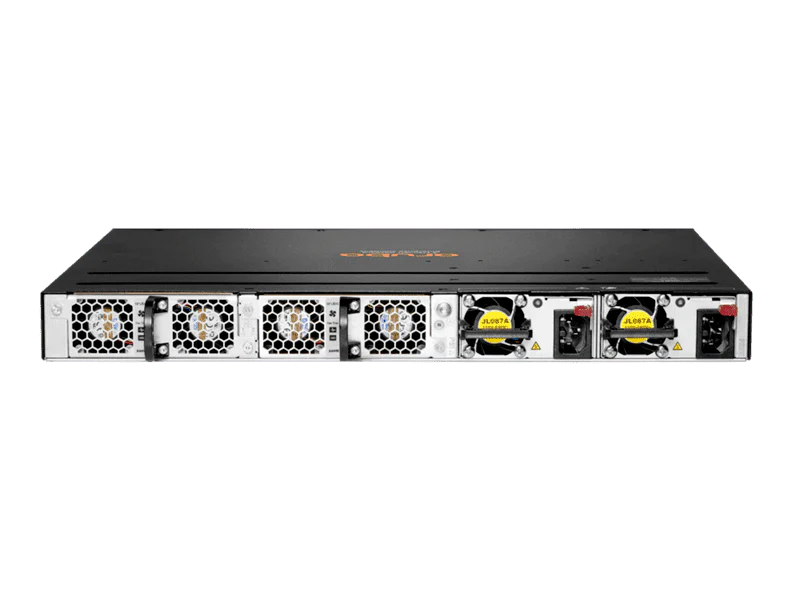

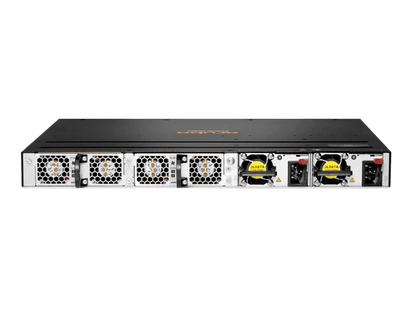

HPE R8Q68A Aruba 6200M 24-Port PoE+ 740W Managed Gigabit Switch w/ 4 SFP+
HPE ArubaSKU: R8Q68A
HPE R8Q68A Aruba 6200M 24-Port PoE+ 740W Managed Gigabit Switch w/ 4 SFP+
HPE ArubaHPE R8Q68A Aruba 6200M 24-Port PoE+ 740W Managed Gigabit Switch w/ 4 SFP+
SKU:R8Q68A
Prix habituel
86 915 Dhs
Prix habituel
0 Dhs
Prix promotionnel
86 915 Dhs
Quantité
Contactez-nous
Frais d'expédition calculés à l'étape de paiement.
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
HPE Aruba Networking CX 6200M 24G Class4 PoE 4SFP+ Switch [R8Q68A]
What's New
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Specifications
| Category | Specification |
|---|---|
| General | |
| Detailed Product Description | Aruba 6200M 24G Class4 PoE 4SFP+ Switch Must Select PSU Min1 / Max2 (680W JL086A, 1050W JL087A) Includes 1 Fan tray (JL669B), with 1 open slot with blank cover Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver 1U - Height |
| Weight | 6.01 kg (13.25 lbs) |
| Dimensions (HxWxD) | 4.39 x 44.247 x 38.38 cm (1.73 x 17.42 x 15.11 in) |
| Power | |
| Power Consumption | 76W at 230 VAC |
| Input Voltage | 100V-120V/200V-240V |
| Power Supply Name | 2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs: JL086A, JL087A Max PoE Power: 740W |
| PoE Capability | 740W |
| Ports | |
| Ports | 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port |
| 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256) | |
| Supports PoE Standards IEEE 802.3af, 802.3at | |
| 1x RJ-45 Console Port | |
| 1x USB-C Console Port | |
| 1x OOBM | |
| 1x USB Type-A Host port | |
| Performance | |
| Latency | 1 Gbps: 2.28 μSec; 10 Gbps: 1.46 μSec |
| Routing/Switching Capacity | 128 Gbps |
| Stacking Capabilities | 8 members |
| Throughput | Up to 95.2 Mpps |
| Memory and Processor | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Warranty | Limited Lifetime Warranty, see Warranty Information |
| Miscellaneous | |
| Environmental Features | Includes 1 Fan tray (JL669B), with 1 open slot with blank cover |
| Mounting | 1U - Height |
