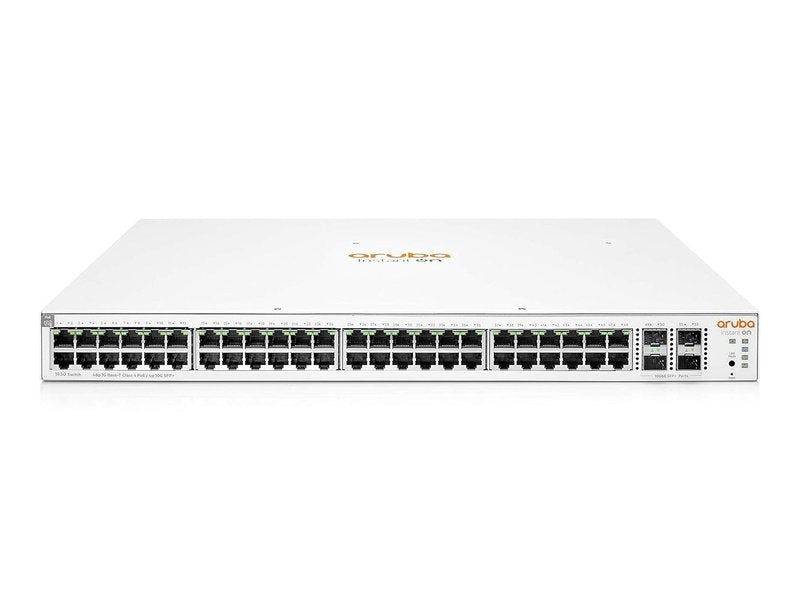

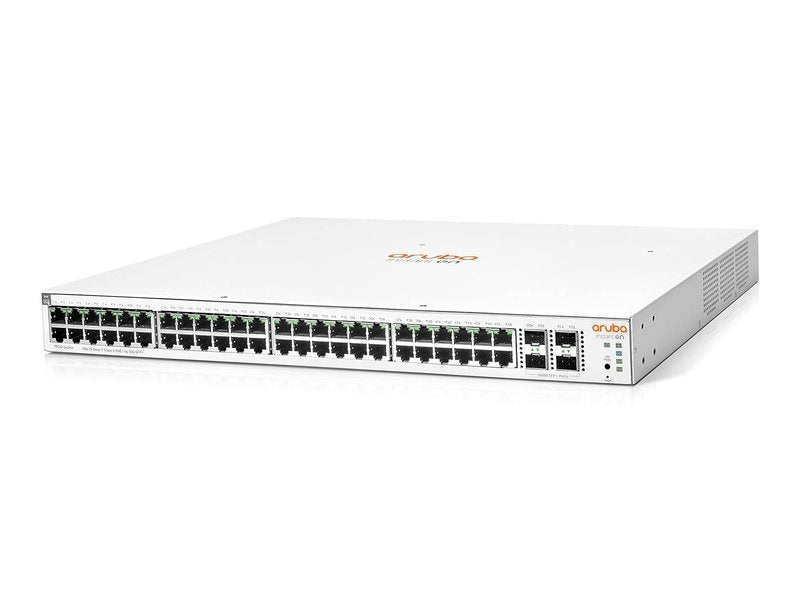

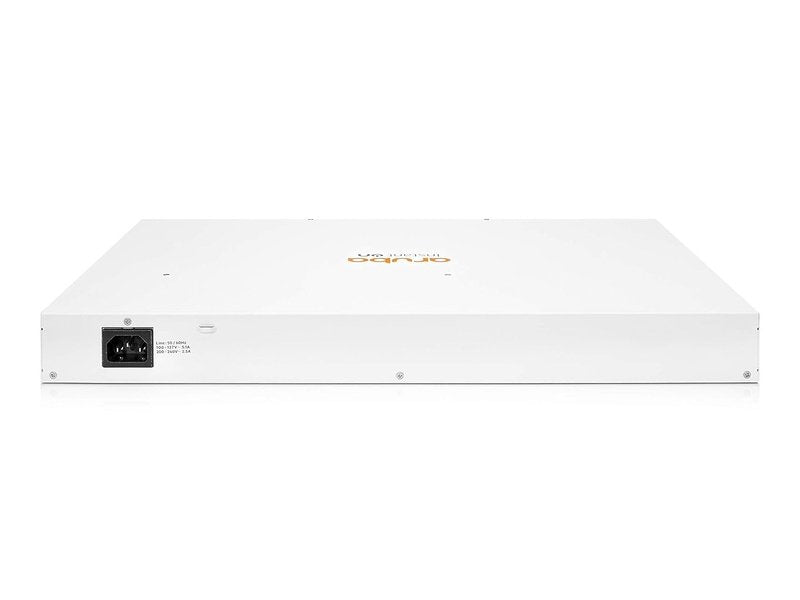

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 [JL686B]

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

What's New

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
• 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Option to manage your switches through local web GUI.
• Limited Lifetime Warranty.

Specifications

Feature	Description
Differentiator	Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses.
	Easy-to-deploy, secure, and affordable solution. Setup, monitor, and manage through Instant On mobile app, cloud-based web portal, or local web GUI.
Power Consumption	Maximum: 520.0W, Idle: 50.0W
Input Voltage	100 - 127 / 200 - 240 VAC
Ports	48 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
Switching Capacity	176 Gbps
Throughput	130.95 Mpps, maximum
Memory and Processor	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; 1.5 MB packet buffer
PoE Capability	370 W Class 4
Management Features	Aruba Instant On Portal, Web browser, SNMP Manager
Warranty	Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Weight	4.59 kg (10.12 lb)
Dimensions	4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in)
