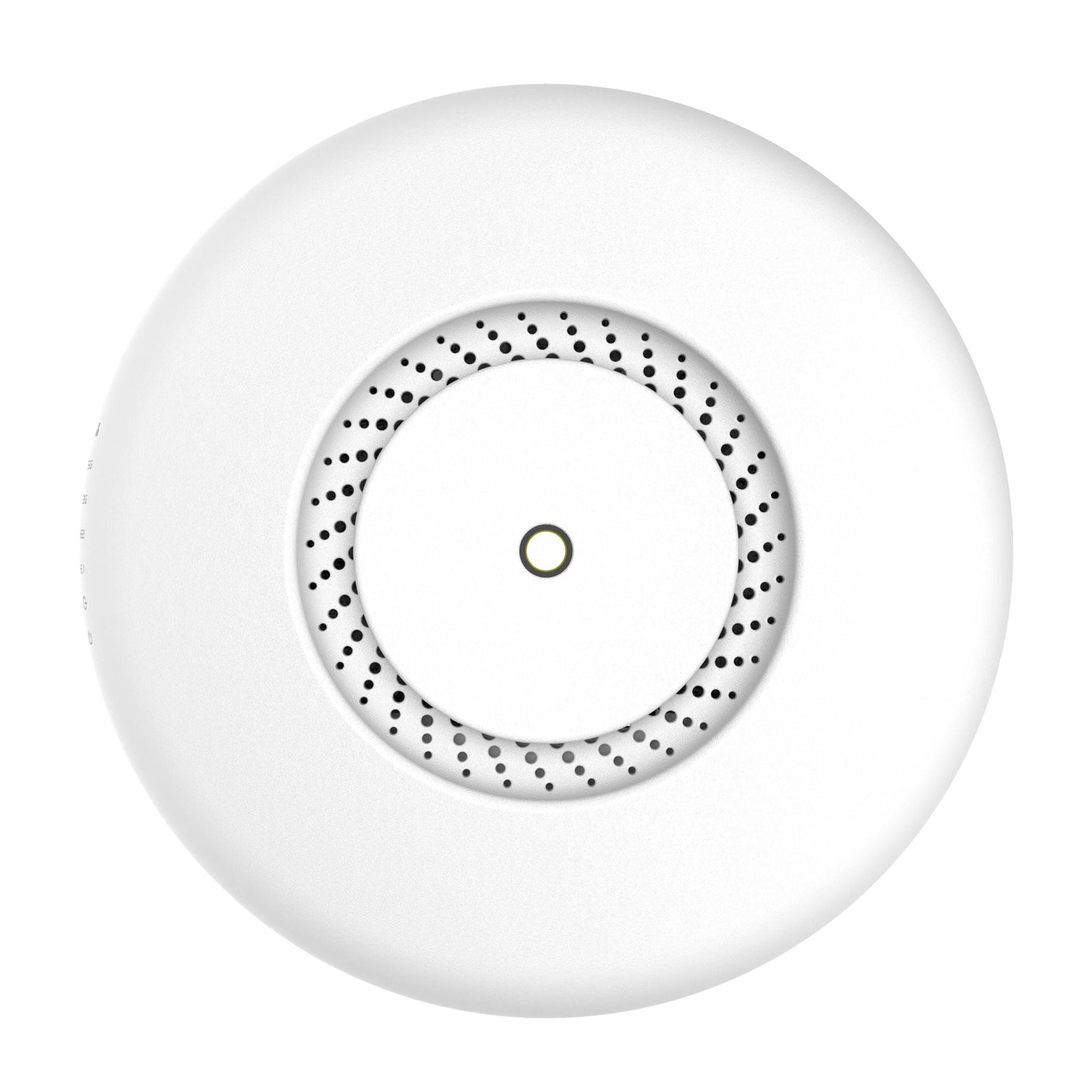

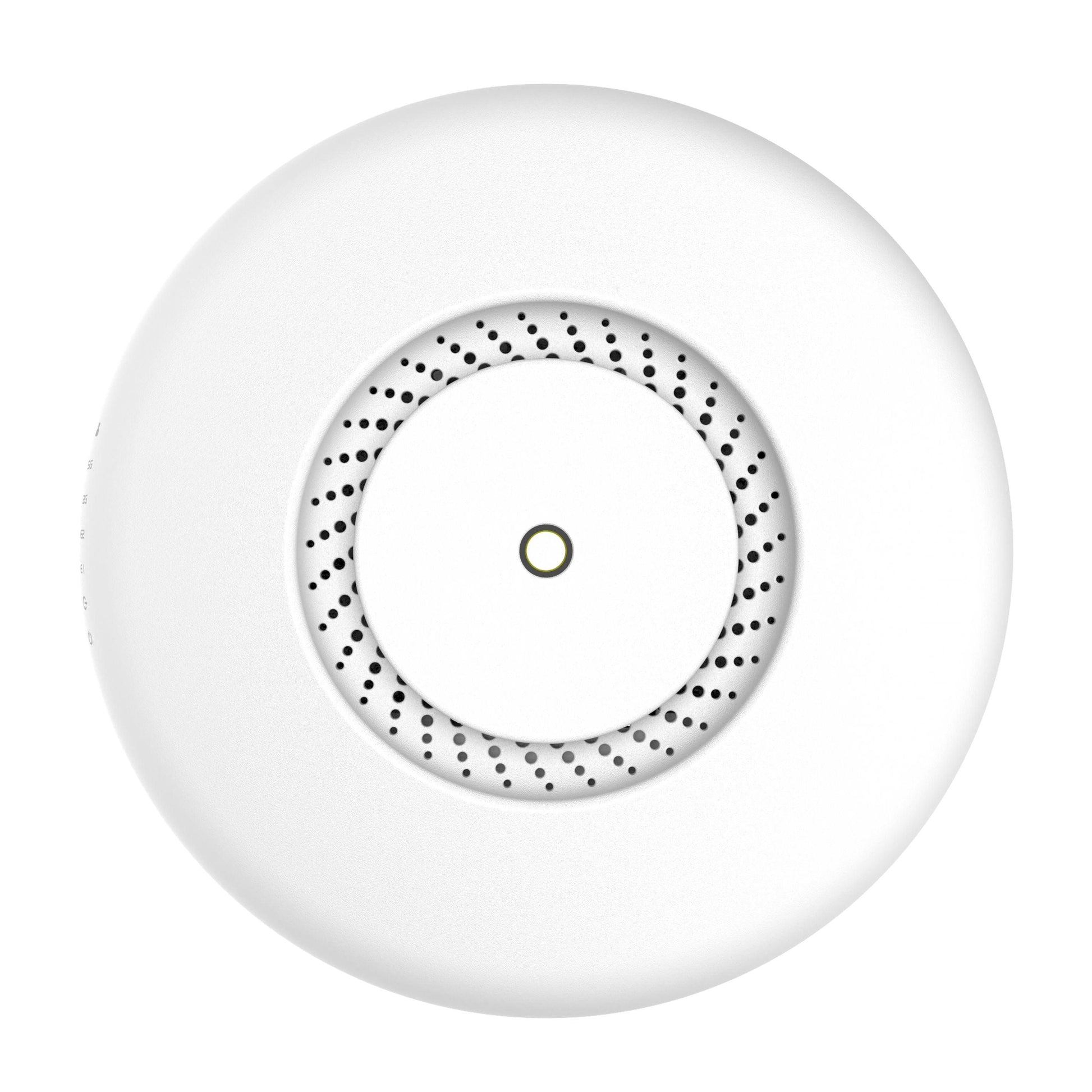

MikroTik cAP ac Dual Band Wall/Ceiling AP US

MikroTik cap Dual Band Wall/Ceiling AP has two Ethernet ports which gives you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3ac/at PoE input on the first port, and passive PoE output on the second port. The cAP ac is a feature packed device with a sleek enclosure that can become inconspicuous with the push of a button. The customization mode button in the device center will turn off all lights and sounds at its default configuration, but can be reconfigured to launch any RouterOS script.

• CPU: IPQ-4018
• CPU nominal frequency: 716MHz
• Memory: 128 MB
• Storage Type: Flash
• Storage Size: 16 MB
• 10/100/1000 Ethernet ports: 2
• Wireless regulations: Specific frequency range may be limited by country regulations
• Wireless: 2.4GHz: 2412-2462 MHz
• Wireless: 5GHz: 5170-5250 MHz /5725-5835 MHz
• Protocols: 2.4GHz at 802.11b/g/n
• Protocols: 5GHz at 802.11ac
• Number of chains 2
• Antenna gain: 2dBi at 2.4GHz
• Antenna gain: 2.5dBi at 5GHz
• Power options: PoE-in 802.3af/at, PoE-out (passive, Ethernet port2), 17-57 V
• Consumption: 13 W
• Dimensions: Round case: 136mm, height: 30mm
• Dimensions: Square case: 145mm x 145mm x 30mm
• Operating Temperature: -40C to +70C tested
• LEDs: 7x LEDs (1x user LED)
• License Level: 4
• Operating system: RouterOS

(1) 24V 1.2A power adapter

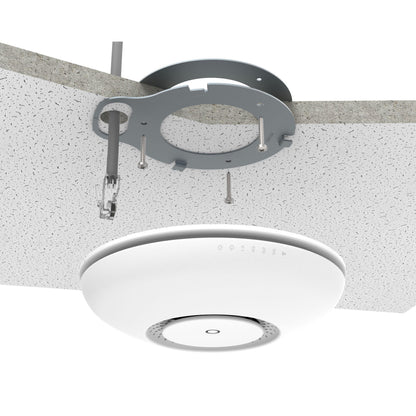

(1) Ceiling Mount

(1) Gigabit PoE Injector

(1) K-46 Screw Kit
