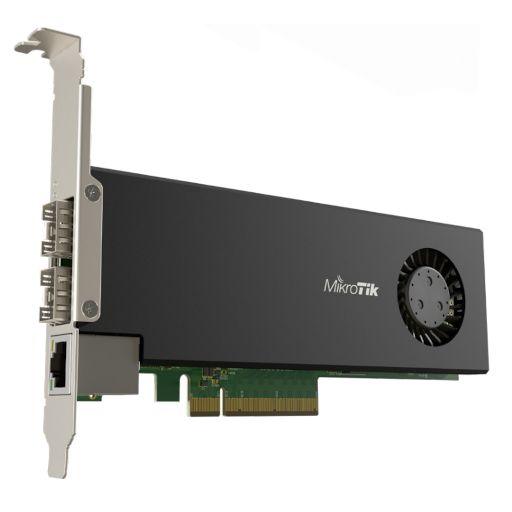

MikroTik CCR2004 PCIe Network Interface Card

The MikroTik CCR2004 With 4GB of RAM, 128MB of NAND storage, and a powerful quad-core ARMv8 64-bit CPU, this device can handle a lot: firewalls, user management and access control for home media and file servers, and even some traffic control in data centers – without the need for a stand-alone router. This form-factor does come with certain limitations that you should keep in mind. The CCR NIC card needs some time to boot up compared to ASIC-based setups. If the host system is up before the CCR card, it will not appear among the available devices. You should add a PCIe device initialization delay after power-up in the BIOS. Or you will need to re-initialize the PCIe devices from the HOST system.

• All RouterPS Features
• Quad-Core ARMV8 CPU
• Fully Functional CCR2004 In PCIE 3.0 X8 Form-Factor
• 2x SFP28 Ports for 25 Gigabit Networking
• Gigabit Ethernet
• 4GB DDR4 RAM
• Low-Profile Format - Fits in 2U Server Chassis
• Powered By The Server Motherboard

• CPU: AL32400 2GHz
• CPU architecture: ARM 64bit
• CPU core count: 4
• Size of RAM: 4GB
• RAM type: DDR4
• Storage: 128MB, NAND
• Number of 1G Ethernet ports: 1
• Number of 25G SFP28 ports: 2
• Operating system: RouterOS (License level 6)
• Dimensions: 6.7"x2.71"x.70" (170 x 69 x 18 mm)
• Operating temperature: -4°F to 140°F (-20°C to +60°C)
• Max power consumption: 25W
