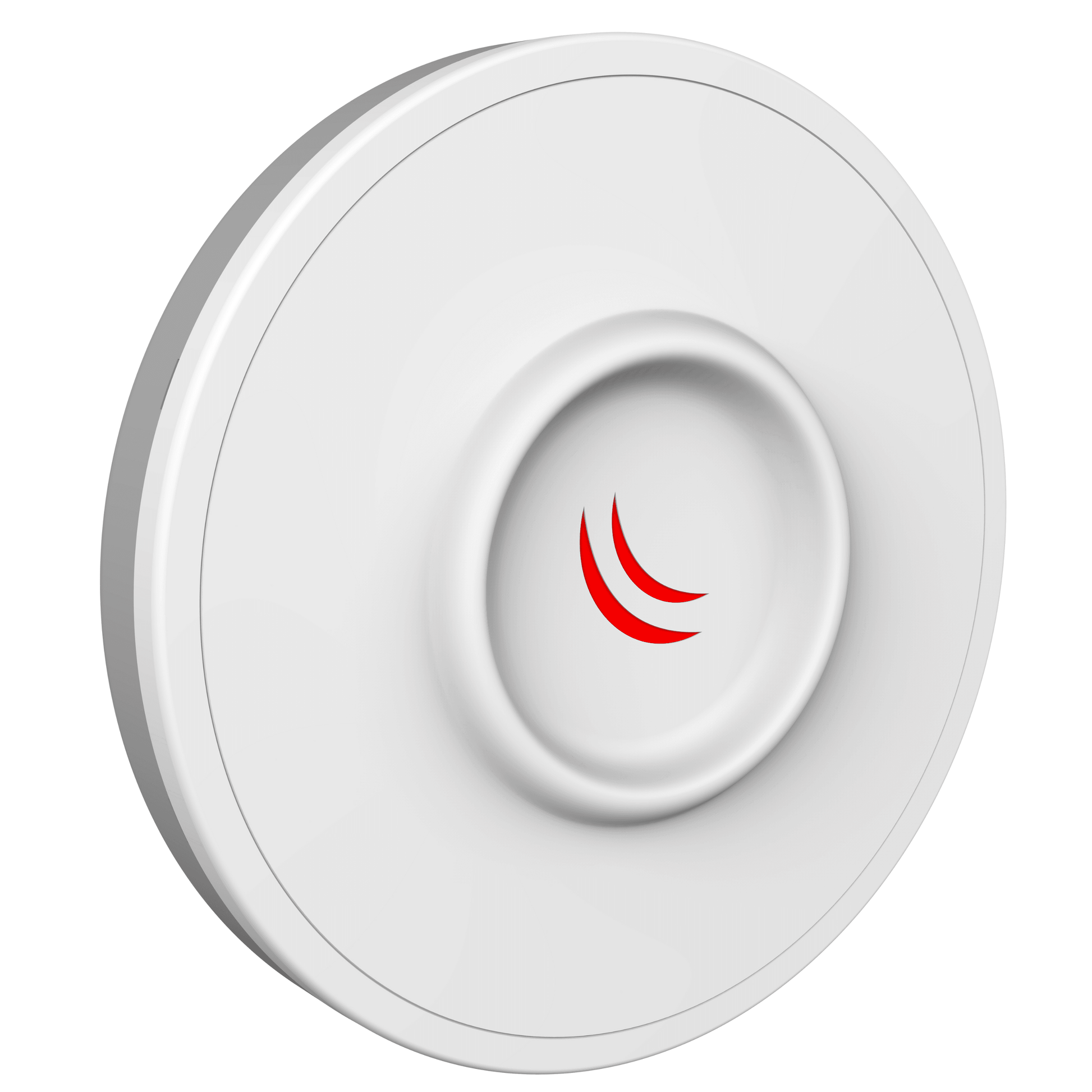

MikroTik DISC Lite5 ac is a low cost high gain 5 GHz CPE. MikroTik has improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances. DISC Lite5 ac is equpped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. it comes complete with a power supply, gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mouting system, including the quickMOUNT pro series. The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5GHz Point-to-Point links.

Product Specifications:

• Product code: RBDiscG-5acD
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 600 MHz
• Dimensions: ⌀ 265mm, height: 80mm
• License level: 3
• Operating System: RouterOS
• Size of RAM: 265 MB
• Storage size: 16 MB
• Storage Type: FLASH
• Tested ambient temperature: -40°C .. +70°C
• LEDs: 8x LEDs (5x user LEDs)
• Antenna Beam width: 12deg
• Antenna gain: 21 dBi
• Consumption: 7 W
• Power options: Passive PoE input 10 - 30 V
• Frequency Range: 5150 MHz-5875 MHz
• Wireless: IPQ-4018, wireless built-in 5 GHz 802.11X, dual chain
• Ethernet: One 10/100/1000 Mbps Ethernet port with Auto-MDI/X

• PoE in: Passive PoE
• PoE in input Voltage: 10-30 V
• Number of DC inputs: 1 (PoE-IN)

• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11ac
• Antenna gain dBi for 5 GHz: 21
• Wireless 5 GHz chip model: IPQ-4018

(1) RBDiscG-5acD-US

(1) 24 V .38 A power adapter

(1) Metal ring

(1) Gigabit PoE injector
