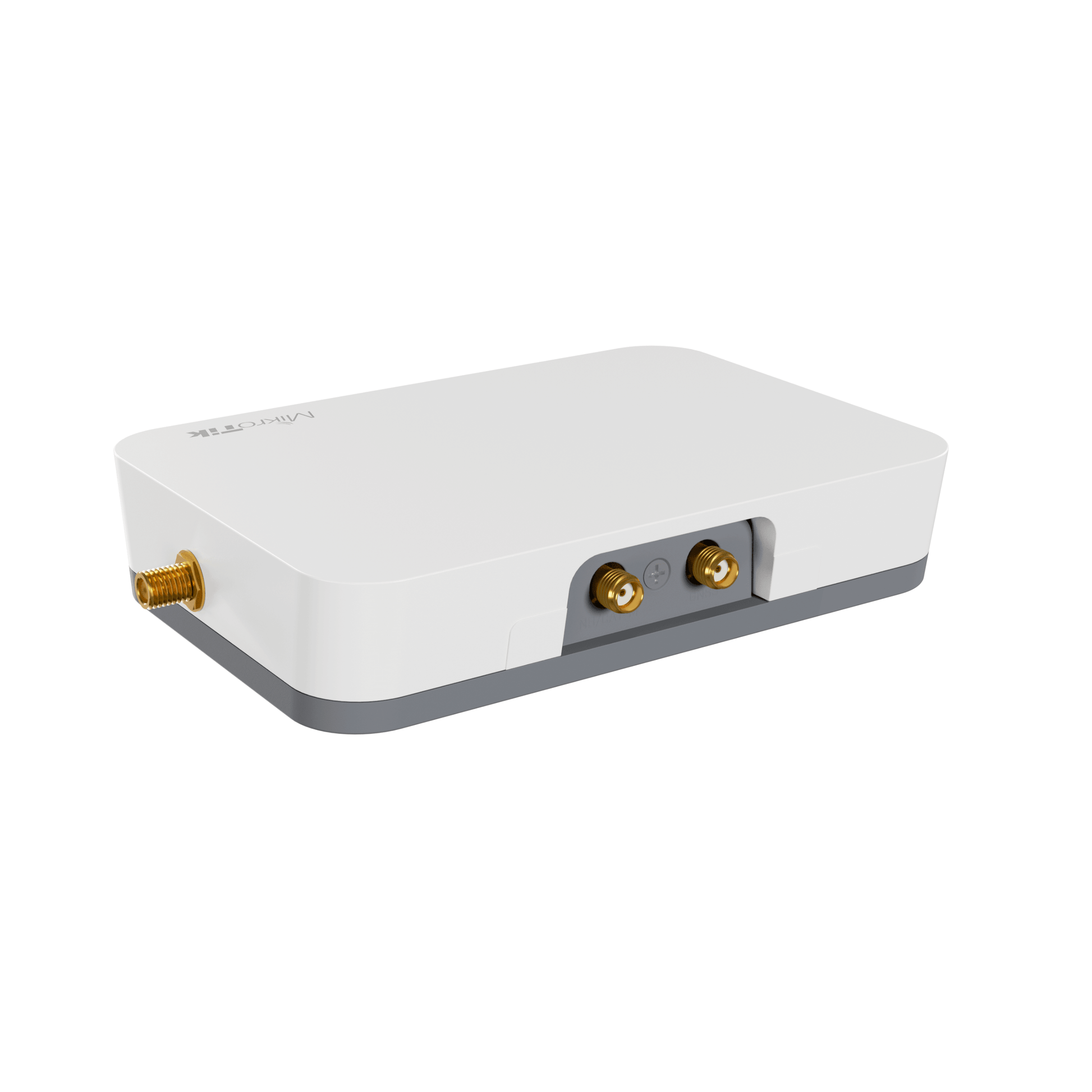

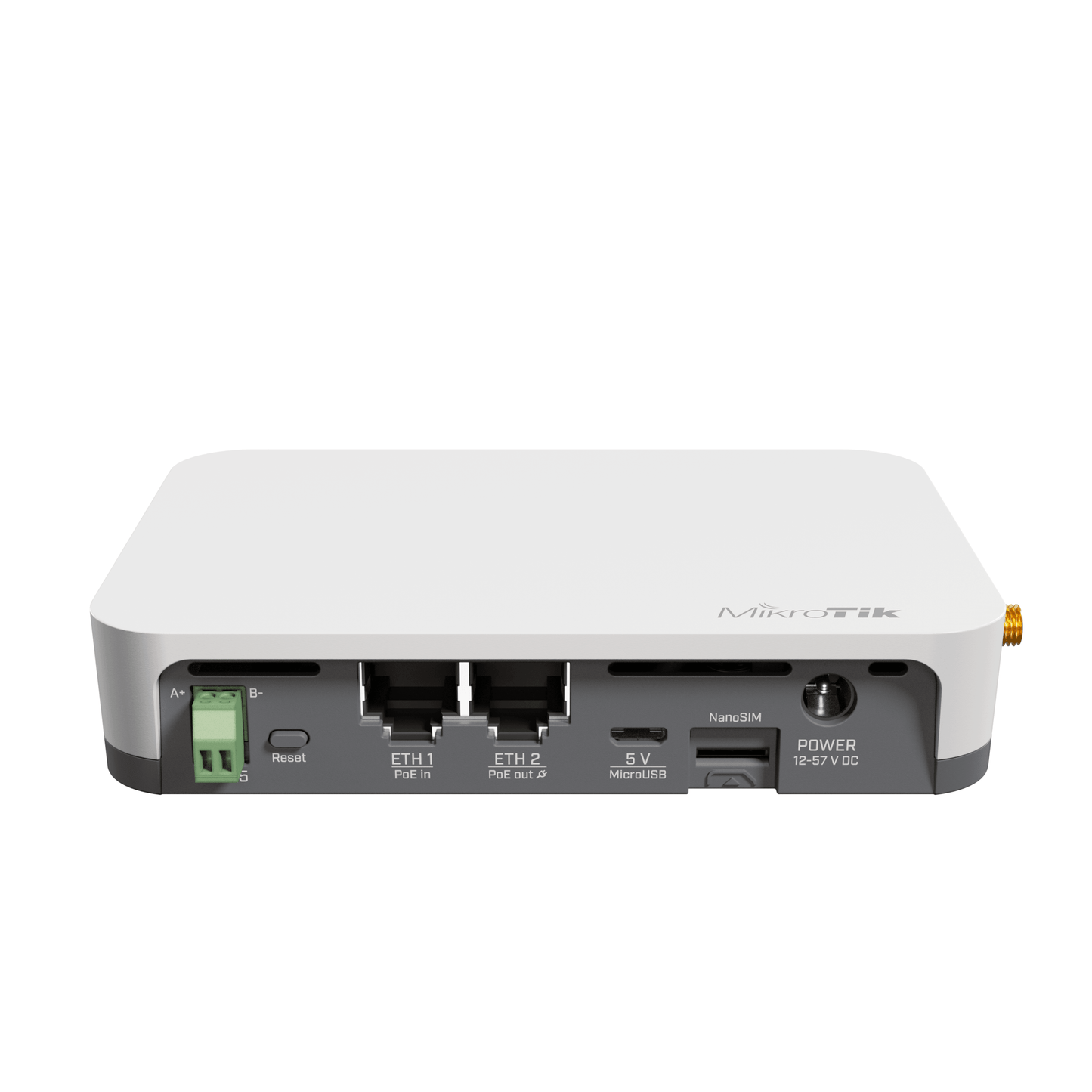

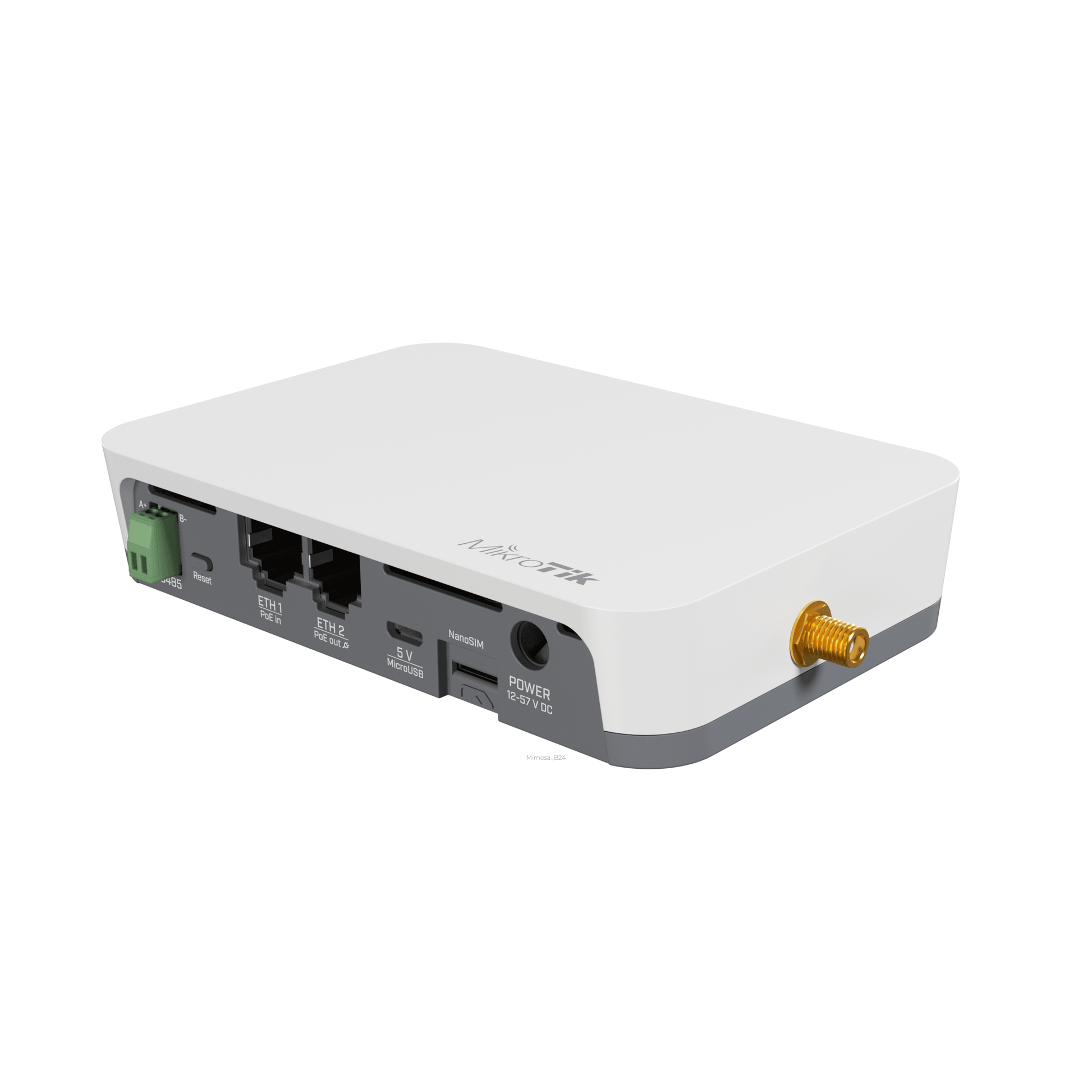

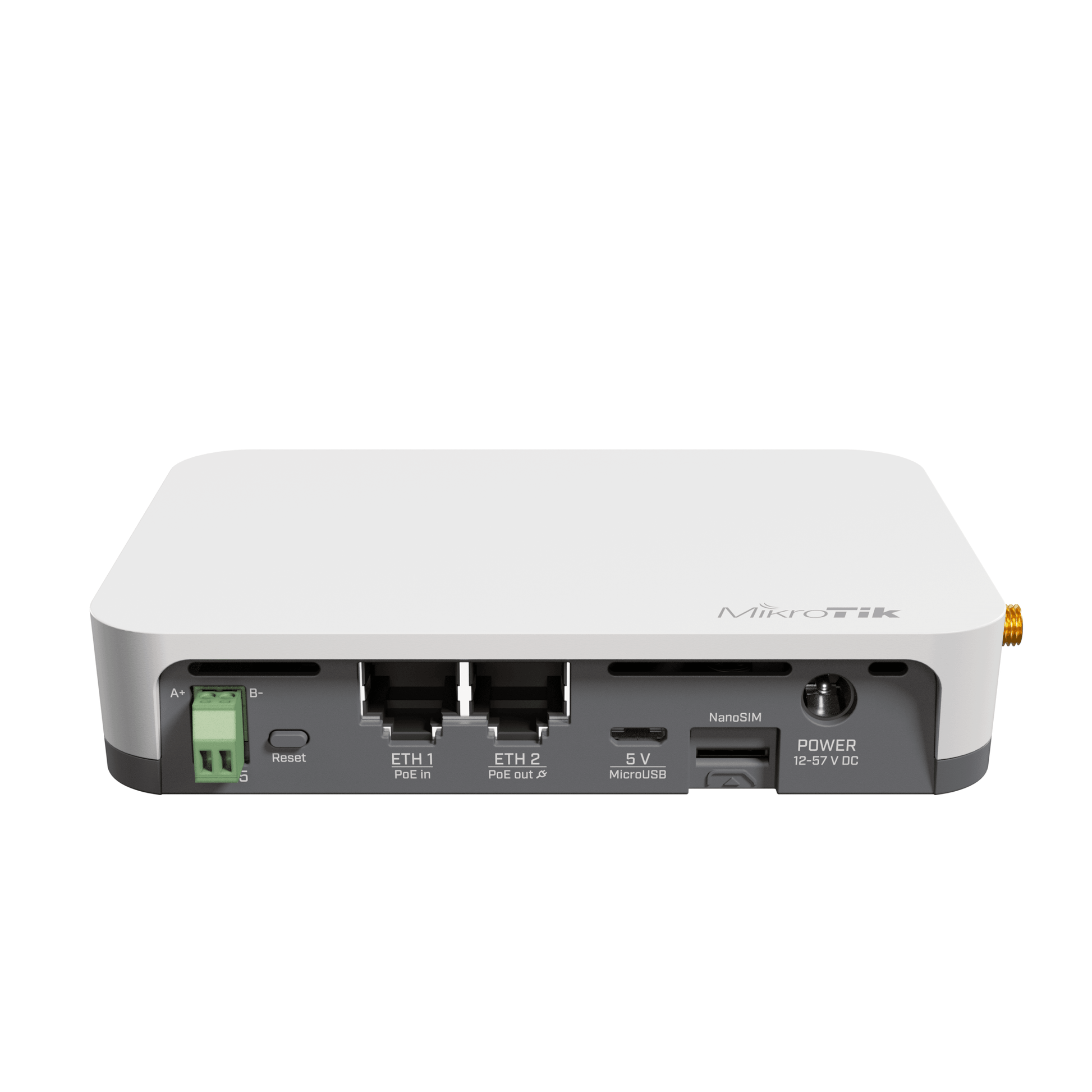

MikroTik KNOT 2.4GHz Bluetooth 2x 100Mbps Ethernet POE LR9 CAT-M LoRa IoT Gateway

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.

• CPU: QCA9531 650MHz
• Number of 100Mbps Ethernet ports: 2
• Number of 100Mbps Ethernet ports with PoE-out: 1
• Size of RAM: 64MB
• Storage: 128MB flash SPI NAND
• Concentrator Gateway card for LoRa: R11e-LR8/R11e-LR9
• Wireless: 2.4GHz 802.11 b/g/n dual-chain
• Antenna gain: 1.5dBi
• Bluetooth antenna gain: 2dBi
• Antenna beam width: 360°
• Bluetooth: Version 5.2
• Operating system: RouterOS, License level 4
• USB port: 1 microUSB port type AB
• SIM slots: 1 Nano SIM
• Built-in GPS: Yes (GPS, GLONASS, BeiDou, Galileo)
• Operating temperature: -40°F to 158°F (-40°C to +70°C)
• Frequency: 902-928 MHz (AU915-928, US902 - 928, AS923, KR920-923)
• RF Output power: 902-928 MHz 23 dBm
• Range: Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5dBi antenna kit
• Number of DC inputs: 3 (PoE-in, DC jack, MicroUSB)
• Supported input Voltage: 12V - 57V (PoE-in. DC jack), 5V (MicroUSB)
• PoE-out: 802.3af/at
• Max power consumption: 18W

(1) MikroTik KNOT RB924iR-2nD-BT5&BG77&R11e-LR9

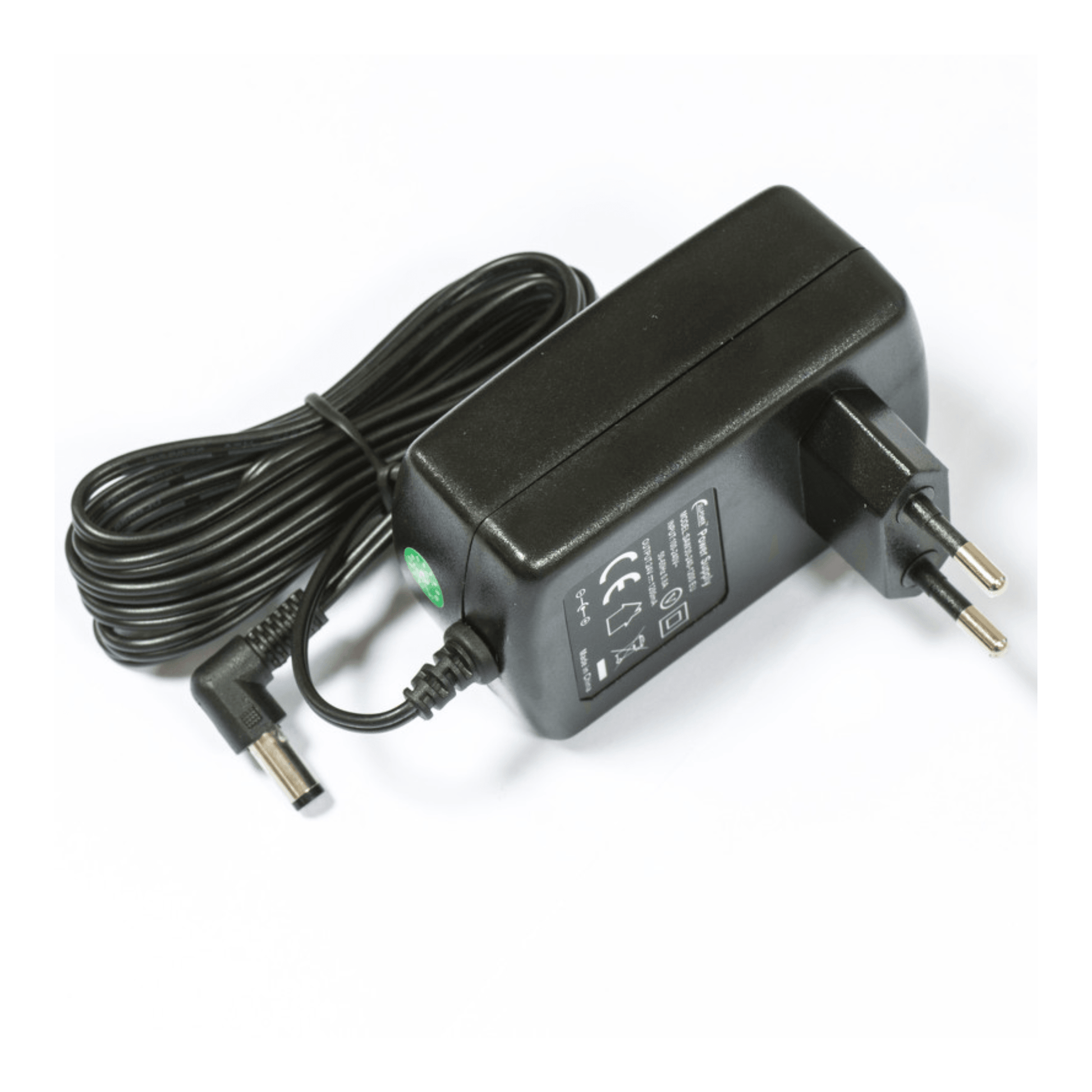

(1) 24V 1.2A Power Adapter

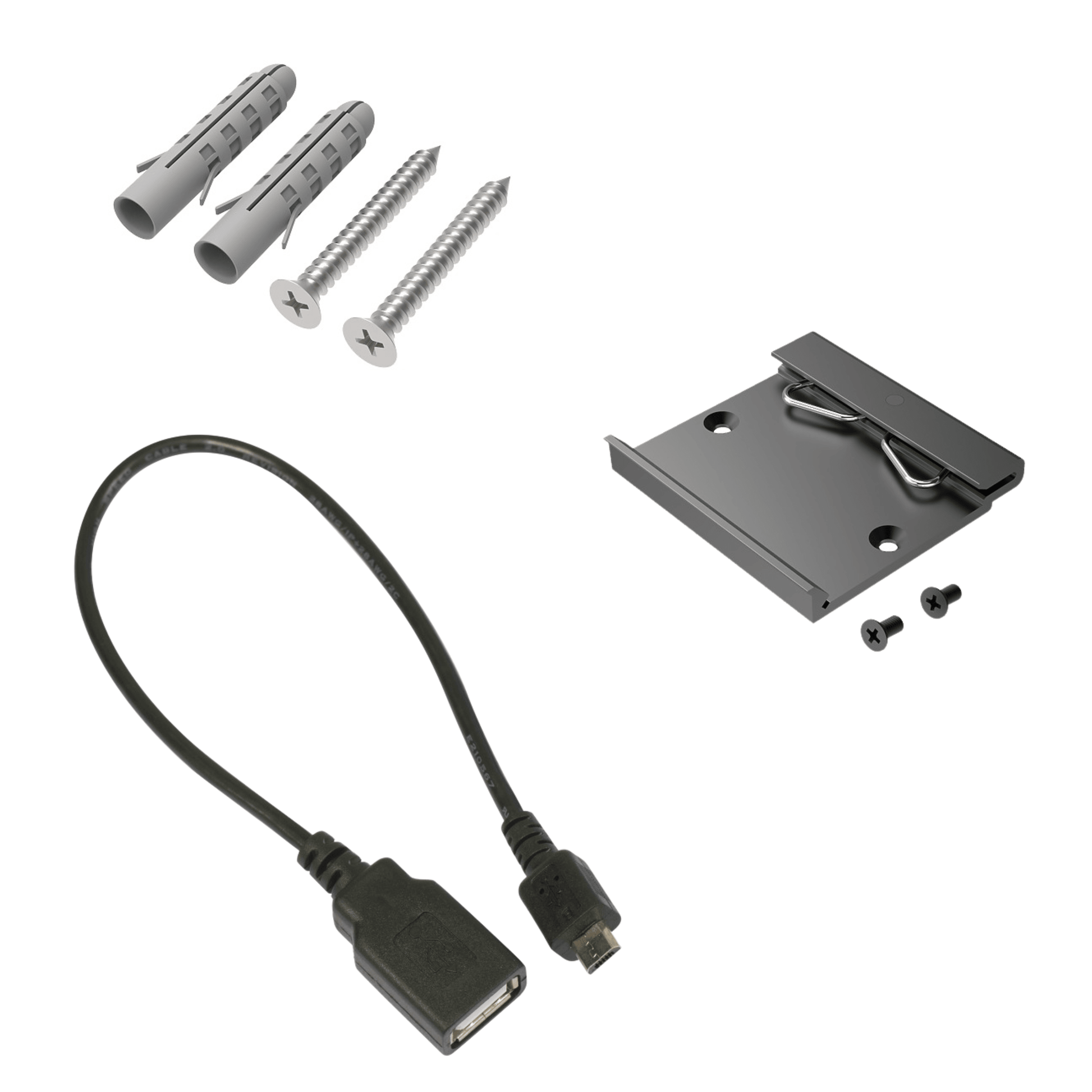

(1) Wall Mount Set

(1) DIN Rail Mount Set

(1) USB A Female to Micro B Cable
