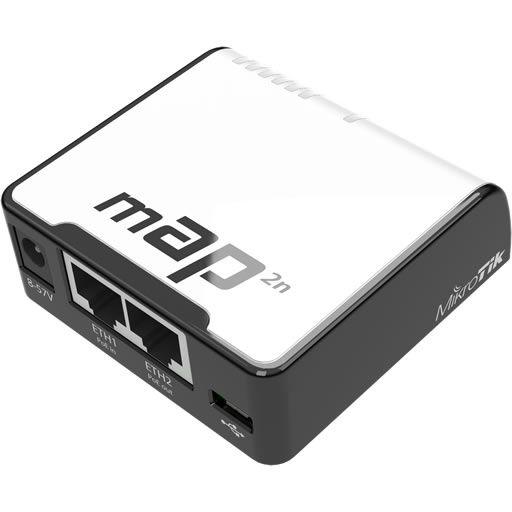

Indoor Access Point, a fully-capable router, a PoE Injector and a 3G/4G Hotspot....all in a device just slightly bigger than a matchbox! There has not been anything else quite like this on the market and we are proud to introduce to you.....the mAP2nD! The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive or Active PoE (802.3af and 802.3at) and power jack. In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. Add the Maxxwave 3G/4G Modems via its USB (sold separately, see Related Products at left), and you got yourself a hotspot!

Product Features:

• PoE in 10-57V
• Built in 2.4GHz AP
• microUSB for a 3G/4G modem, or for power input
• Station or AP mode wireless
• Passive PoE output (same as input voltage)

• CPU: Qualcomm Atheros AR9531 650 MHz
• RAM: 64MB DDR2
• Ethernet: 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
• Storage: 16MB built in flash storage
• Wireless: QCA9531, 2.4GHz 802.11b/g/n built in
• Antenna: 1.2dBi built in
• Power input: Passive PoE 10-57V and 802.3af/at, supports powering from USB
• Power output: Passive PoE output, up to 500mA on Ether 2
• Case dimensions: 68x68x19mm
• Temperature: -10C to +70C tested
• OS MikroTik: RouterOS v6, Level 4 license

(1) RBmAP2nD

(1) 24V 0.8A power adapter

(1) microUSB type B to USB type A adapter
