RBSXTG-5HPnD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

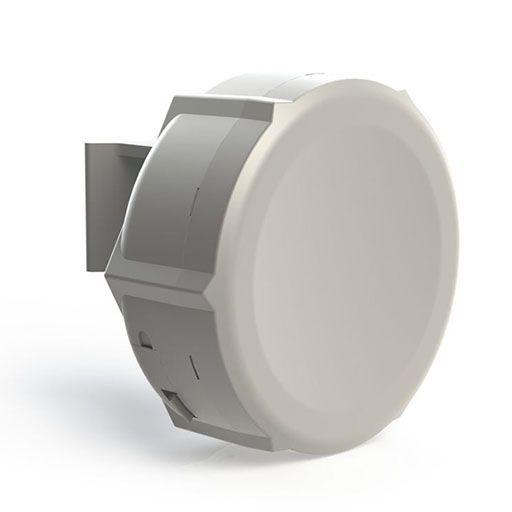

The MikroTik SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a ninety degree antenna to provide a wider coverage than our previous SXT units. Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes.

The unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MiMO.

• CPU: AR9344 600MHz
• Memory: 64MB DDR SDRAM onboard
• Antenna: 90 deg, -35dB port to port isolation, 14dBi gain
• Ethernet: 10/100/1000 (Gigabit) Ethernet port
• Wireless Cards: Onboard dual chain 5GHz 802.11a/n .10kV ESD protection on RF port
• Power: 8-30V DC. Packaged with 24V DC 0.8A PSU and passive PoE injector
• Dimensions: 140x140x56mm. Weight without packaging, adapters and cables: 265g
• Power Consumption: Up to 7W
• Operating Temperature: -30C .. +80C
• RouterOS, Level 4 License

(1) SXTG wireless access point with integrated antenna

(1) Pole mounting bracket

(1) Mounting ring

(1) PoE injector

(1) Power adapter

(1) Quick setup guide
