RBSXTsq5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

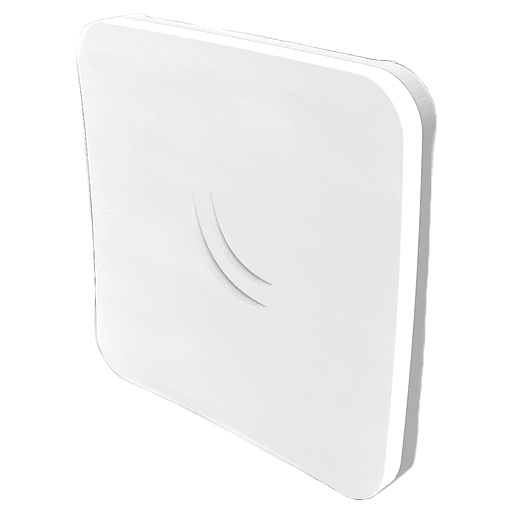

The SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna. It has a 16dBi High Power antenna, and high output power (up to 28dBm) which allows to reach longer distances than the SXTsq Lite5 model. The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit ethernet port. There is also grounding connection easily accessible for lightning protection.

Product Specifications:

• CPU: Single Core 600Mhz AR9344
• RAM: 64MB
• Storage: 16MB Flash
• 10/100 Ports: 1
• Wireless: Dual chain 802.11a/n (AR9344)
• Antenna Gain: 16dBi
• Antenna beam width: 23°
• PoE in: Yes
• OS: Router OS Level 4
• Max Power Consumption: 7W

(1) MikroTik RBSXTsq5HPnD CPE

(1) 24V 0.38A Power Supplu

(1) Metal Ring

(1) PoE Injector

(1) Quick Start Guide
