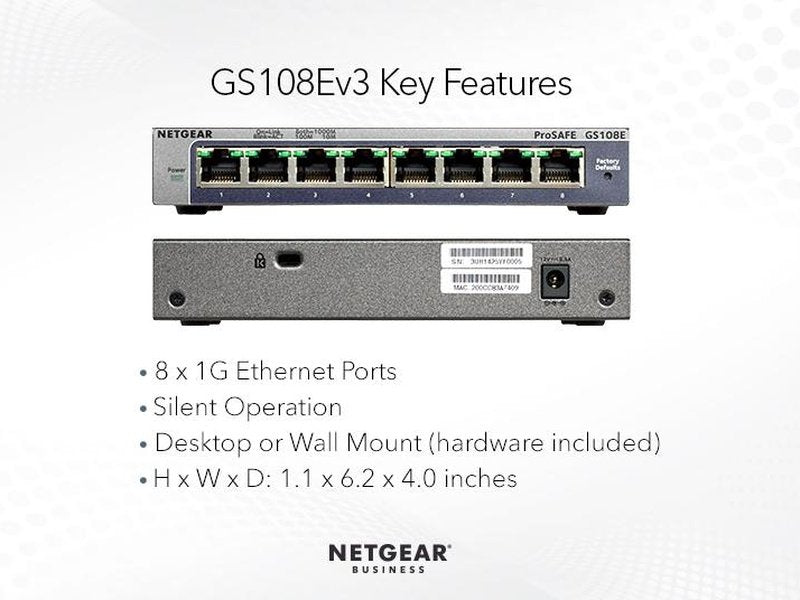

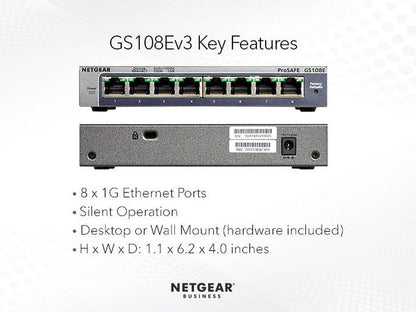

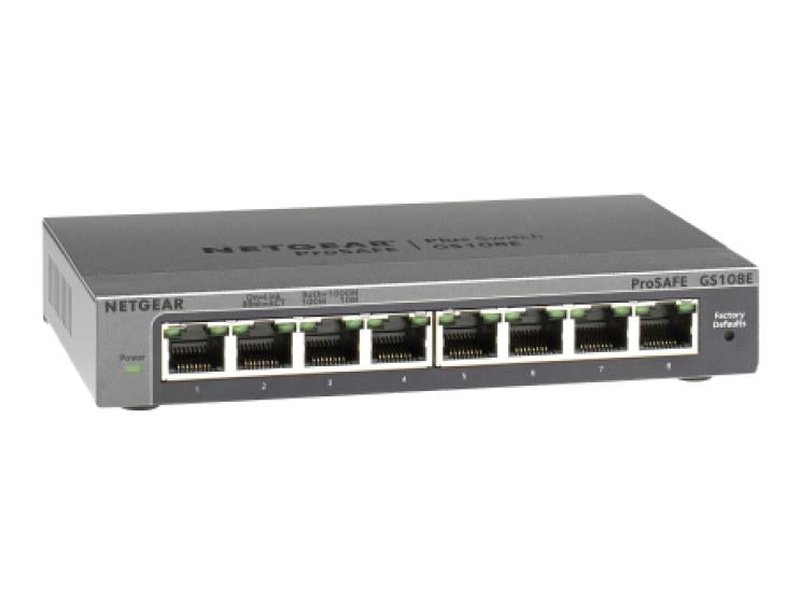

8-Port Gigabit Plus Switch
Gigabit Plus Switch Series (GS108E)
On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
Features
MANAGEMENT
Traffic Management
Auto Negotiation of speed and duplex modes
802.3x Flow Control
DHCP Client
Dynamic MAC address management
IEEE 802.1Q-based or port-based VLAN
QoS based on WRR, strict priority, or both
Port-based and IEEE 802.1p-based QoS
QoS based on ToS (Type-of-Service)
DSCP Support (GS105E and GS105PE only)
Rate Limiting
Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)
Switch Management
Switch discovery on MAC or PC using the NETGEAR Switch Discovery Tool
Advanced configuration and management using web browser-based GUI
Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
Firmware upgrade thru ProSAFE Plus Utility (TFTP) or web browser-based GUI
Configuration upload (to Server)
System password protection
Multi-language support (varies by model, see datasheet for specifics)
MULTICAST EFFICIENCY
IGMP snooping, v1, v2 and v3
Blocking of unknown multicast traffic
Act as static multicast router port
RELIABILITY
Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
Power savings with short cable detection and auto power-down when ports are in idle mode
Specifications
Feature
Description
Gigabit Ports
8
10 Gbps Ports
N/A
Number of PoE ports
N/A
Total PoE Power Budget (Watts)
N/A
Max MAC entries
4K
Buffer size
192KB
VLAN (Number Supported)
32
Number of LAGs & Number of Members
N/A
Supported Multicast groups
128
Max number of source ports allowed (many to 1)
7
Power Supply
External
Power Input
12V/0.5A
Power Max Consumption (Watts)
4.45 maximum
Fans
0
Acoustic Noise Level @25°C (dBA)
0
Operating Temperature
0°C to 40°C
MTBF
2,525,259 hours
Electromagnetic Compliance (A or B)
B
Weight (kg)
0.55
Dimensions (WxDxH) mm
158x105x27
Support
This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability, and terms and conditions. ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days. Remote diagnostics performed by technical experts for prompt resolution of technical issues. ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
