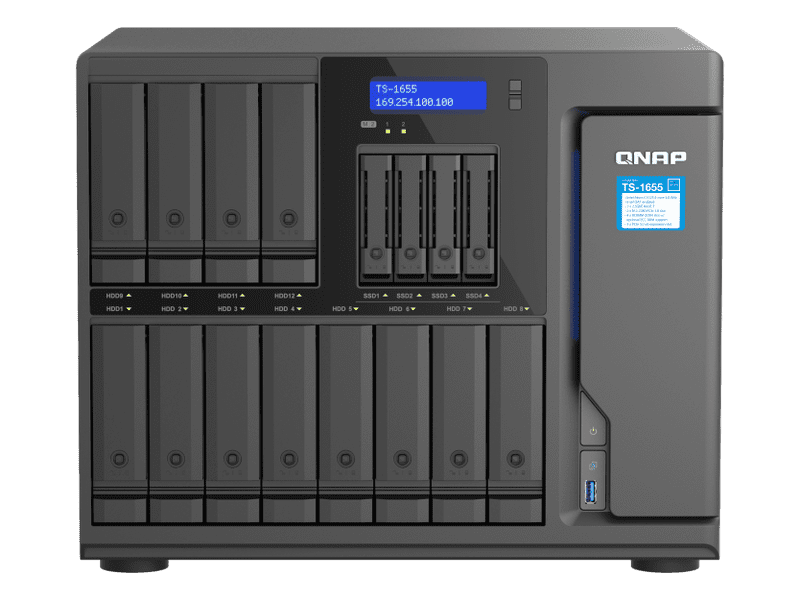

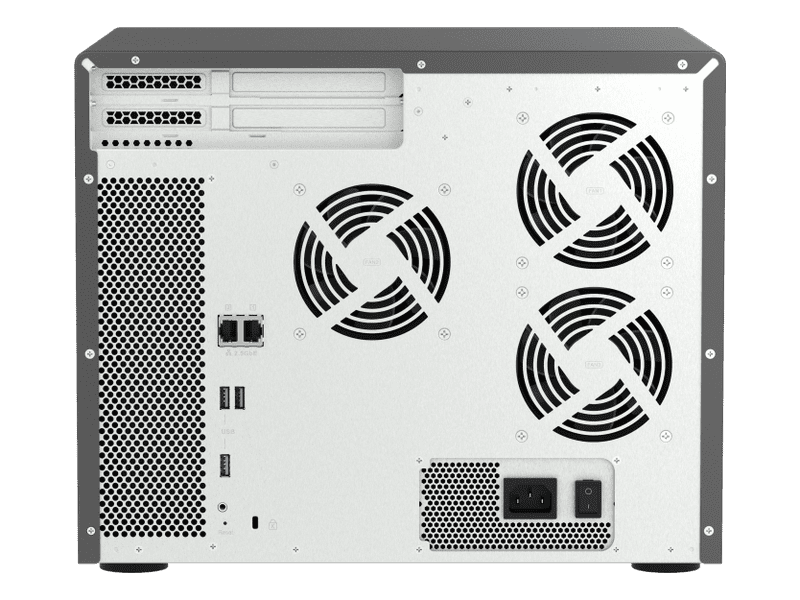

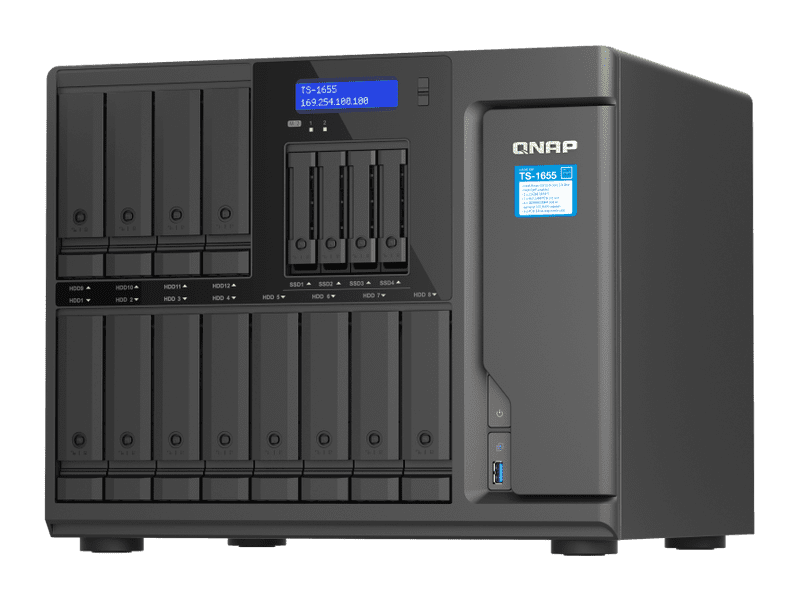

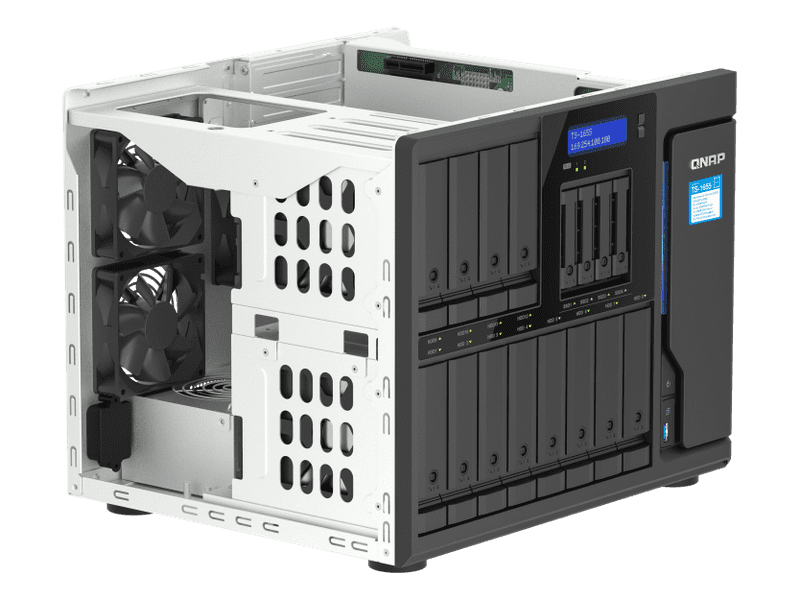

QNAP 16-Bay Intel Atom C5125 NAS Diskless

QNAP

SKU: TS-1655-8G

1 4

QNAP 16-Bay Intel Atom C5125 NAS Diskless

QNAP

QNAP 16-Bay Intel Atom C5125 NAS Diskless

TS-1655-8G

39 387 Dhs
0 Dhs 39 387 Dhs
Épuisé
Contactez-nous
Frais d'expédition calculés à l'étape de paiement.

Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs

  • Garantie 7 jours retours
  • Commandez avant 12h00 pour une expédition sous 24h
  • Paiement à la livraison

Balance performance and cost with hybrid storage. Designed for diversified business IT environments, the high-capacity TS-1655 has twelve 3.5-inch SATA drive bays (for HDDs) and four 2.5-inch SATA drive bays (for SSDs) with 2.5GbE high-speed connectivity. Fueled by an immense 8-core Intel Processor, the TS-1655 presents a secure, scalable, and complete business-ready storage solution for cross-team file sharing, collaboration, backup & disaster recovery, virtualization, and intensive data transmission. The TS-1655 will be available and supported by QNAP for an extended period (up to 2027), ideal for businesses requiring matching NAS models deployed in multiple locations.

  • Dual 2.5GbE connectivity

    High-speed 2.5GbE accelerates intensive file access, large backup/restoration tasks, virtualization, and multimedia transfer.

  • SSD caching and AI acceleration

    Two M.2 NVMe PCIe Gen 3 slots allow implementing SSD cache acceleration, SSD storage pool, or a Coral M.2 accelerator for faster image recognition.

  • Flexible PCIe expansion

    Three PCIe slots allow for installing 5/10/25GbE adapters, Fibre Channel cards, or QM2 cards to increase application performance.

  • Virtual machines and containers

    Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV.

  • Hybrid cloud

    Realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency cloud data access.

  • Storage scalability

    Satisfy ever-growing storage needs by connecting flexible and economical QNAP expansion enclosures.

Affordable, faster 2.5GbE meets today’s high-bandwidth demands

Featuring two native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-1655 allows you to upgrade network speeds from 1 Gigabit to 2.5 Gigabit using existing CAT5e cables. Port Trunking and failover support further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and real-time applications. QNAP also offers numerous managed/unmanaged 2.5GbE/10GbE switches, assisting organizations in implementing high-speed, secure, and scalable network environments without going over budget.

M.2 slots for SSD caching and accelerated AI-powered image recognition

The TS-1655 is equipped with two M.2 PCIe Gen 3 slots that allow for installing NVMe PCIe Gen 3 SSDs with 2280 form factors or Edge TPU (sold separately) to boost NAS performance.

Abundant I/O capabilities with PCIe expansion

The TS-1655 has three PCIe Gen 3 x4 slots that allow for installing various expansion cards for expanding application potential.

Direct 2.5GbE connectivity for up to 14 PC/workstations

Your team needs a high-speed environment and productivity boost, and the TS-1655 delivers with two 2.5GbE ports. By installing three 4-port PCIe network cards (QXG-2G4T-I225) the TS-1655 can directly connect to up to 14 PC/workstations - no switch required – for faster large file transfer/backup, video editing, and much more.

Comprehensive backup and disaster recovery solution

The TS-1655 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

  • PC/Laptop backup

    For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.



  • Remote backup for NAS

    Hybrid Backup Sync makes it easy to back up data from a TS-1655 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.



  • VM backup

    Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.



  • SaaS backup

    Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.



  • Cloud backup for NAS

    Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.



  • QuDedup technology

    Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats

The TS-1655 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

  • Volume and LUN snapshots

    Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

  • Instantly restore snapshots

    Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

  • Back up snapshots

    Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-1655 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TS-1655, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

  • Virtualization Station

    Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.



  • Container Station

    Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.



  • Linux Station

    Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.



  • Single Root I/O Virtualization (SR-IOV)

    By installing an SR-IOV compatible PCIe SmartNIC in the TS-1655, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.



  • QuTScloud virtual NAS

    QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.

Comprehensive security and privilege settings

The TS-1655 is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

  • myQNAPcloud secures remote access

    myQNAPcloud allows convenient connection to the TS-1655 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.



  • Simplified privilege settings

    The TS-1655 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

  • QuFirewall protection

    Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.



  • Superior security with QVPN

    A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-1655 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.



  • Security Counselor

    A security portal for the TS-1655 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.



  • Malware Remover

    Regularly scan your TS-1655 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration center

The TS-1655 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb Fibre Channel expansion cards in the TS-1655, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Smart surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-1655 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

  • Free embedded channels

    2 IP camera channels

  • Total camera channels

    Scalable with optional licenses

  • Subscription-based

    Monthly US $1.99 /channel

  • Video format

    MP4

  • Mobile app

    QVR Pro Client and mobile app

  • Scalable storage

    NAS expansion units

Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-1655 storage as needed to accommodate data and business growth.

  • Attach QNAP expansion enclosures

    Connect expansion enclosures to the TS-1655, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.


  • Mount cloud storage or remote file servers

    Mount cloud storage or remote file servers to expand the capacity of the TS-1655 while also centrally managing files on the NAS, cloud storage, and remote devices.


  • Migrate to a new NAS

    Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

  • Upgrade RAID capacity

    Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

Specifications
CPU Intel ® Atom® C5125 8-core processor, 2.8GHz
CPU Architecture 64-bit x86
Floating Point Unit ✓
Encryption Engine  ✓(AES-NI)
System Memory 8 GB non-ECC UDIMM DDR4 (1 x 8 GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x U-DIMM DDR4
Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable
✓
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support ✓
SR-IOV ✓
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Optional via PCIe expansion card
25 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame ✓
PCIe Slot 3
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
Slot 3: PCIe Gen 3 x4
Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 4
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 294.29 × 369.89 × 319.8 mm
Weight (Net) 13.16 kg
Weight (Gross) 16.68 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W, 100-240V
1 x 8-pin PCI-e cable + 1 x 8 (6+2)-pin PCI-e cable
Power Consumption: HDD Sleep Mode 68.004 W
Power Consumption: Operating Mode, Typical 104.65 W
Tested fully populated with 1TB hard drives and 120GB solid-state drives.
Fan System fan: 3 x 92mm, 12VDC
CPU fan: 2 x 97mm, 12VDC
Other Interfaces Kensington security slot
System Warning Buzzer
Kensington Security Slot ✓
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2500
