Overview

- Native dual DisplayPort connections - no adapter required
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
- Maximum resolutions of 3840x2400 at lower refresh rates

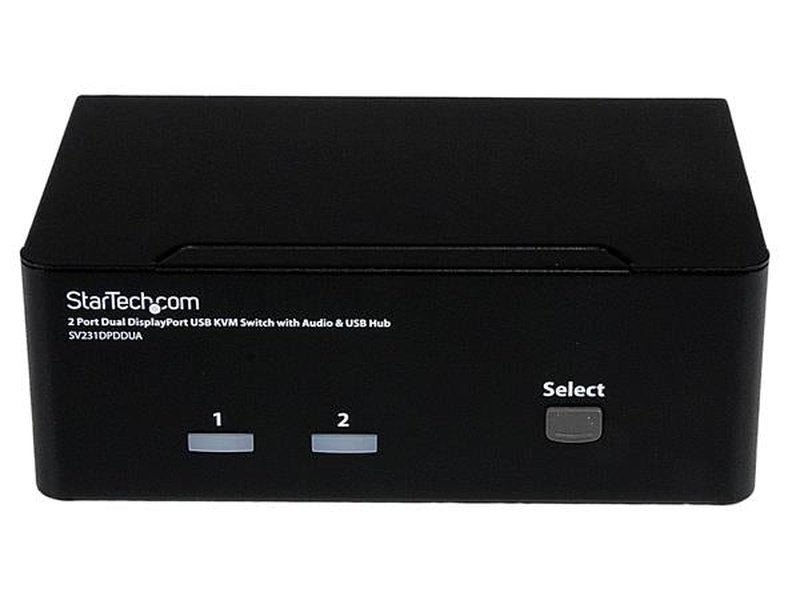

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.




Specifications

HARDWARE
	Audio	Yes
	Cables Included	No
	Daisy-Chain	No
	KVM Ports	2
	Number of Monitors Supported	2
	PC Interface	USB
	PC Video Type	DisplayPort
	Rack-Mountable	No
PERFORMANCE
	DVI Support	Yes - Dual Link
	Hot-Key Selection	Yes
	IP Control	No
	Maximum Digital Resolutions	WQXGA - 2560 x 1600
	Maximum Number of Users	1
	MTBF	138000 hours
	On-Screen Display	No
	Port Selection Support	Push Button and Hotkeys
	Wide Screen Supported	Yes
CONNECTOR(S)
	Console Interface(s)	2 - 3.5 mm Mini-Jack (3 Position) Female
		2 - DisplayPort (20 pin) Female
		4 - USB Type-A (4 pin) USB 2.0 Female
	Host Connectors	2 - USB B (4 pin) Female
		4 - 3.5 mm Mini-Jack (3 Position) Female
		4 - DisplayPort (20 pin) Female
SOFTWARE
	OS Compatibility	OS independent; No software or drivers required
INDICATORS
	LED Indicators	2 - Green - On-Line
		2 - Red - Selected PC
POWER
	Center Tip Polarity	Positive
	Input Current	0.8A
	Input Voltage	110V-240V AC
	Output Current	1.5A
	Output Voltage	12 DC
	Plug Type	M
	Power Consumption (In Watts)	18
	Power Source	AC Adapter Included
ENVIRONMENTAL
	Humidity	0~80% RH
	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
	Color	Black
	Enclosure Type	Steel
	Product Depth	3.9 in [100 mm]
	Product Height	2.3 in [5.8 cm]
	Product Width	6.3 in [16.1 cm]
	Weight of Product	25.9 oz [734 g]
