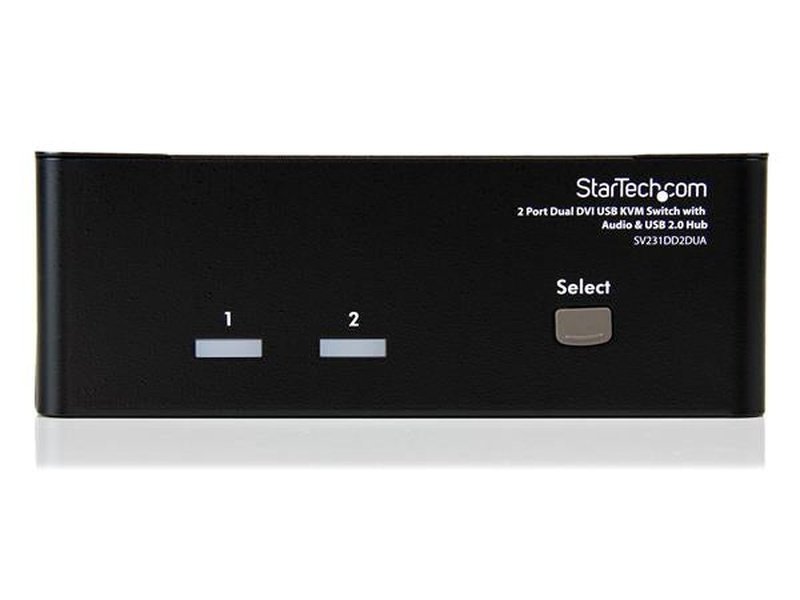

StarTech 2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub

Overview

- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 1920x1200 (DVI-Digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)

The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.

Specifications

HARDWARE
Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	DVI
Rack-Mountable	No
PERFORMANCE
DVI Support	Yes - Single Link
Hot-Key Selection	Yes
IP Control	No
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
MTBF	144000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys
CONNECTOR(S)
Console Interface(s)	2 - 3.5 mm Mini-Jack (3 Position) Female
	2 - DVI-I (29 pin) Female
	4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	2 - USB B (4 pin) Female
	4 - 3.5 mm Mini-Jack (3 Position) Female
	4 - DVI-I (29 pin) Female
SOFTWARE
OS Compatibility	OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
Note	This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
INDICATORS
LED Indicators	1 - Green - Power
	4 - Green - Host Online, Red - Host Selected
POWER
Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	110V-240V AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included
ENVIRONMENTAL
Humidity	90% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
Color	Black
Enclosure Type	Steel
Product Depth	3.9 in [100 mm]
Product Height	2.2 in [5.7 cm]
Product Length	6.4 in [16.3 cm]
Product Width	6.3 in [16 cm]
Weight of Product	27.5 oz [779 g]
