Overview

- Control 2 computers from one USB keyboard/mouse/monitor
- Share 3 different USB peripherals using the integrated hub
- High 1920x1440 resolution capability

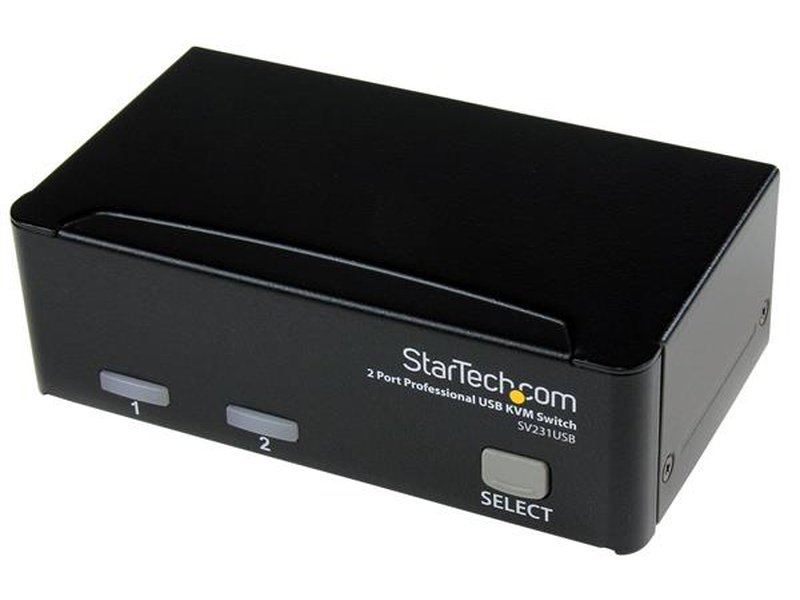

The SV231SUB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.

A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.

Specifications

HARDWARE
Audio	No
Cables Included	Yes
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No
U Height	1U
PERFORMANCE
Auto Scan	3, 8, 15 & 30 seconds
DVI Support	No
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Cable Length	15 ft [4.6 m]
Maximum Number of Users	1
MTBF	111,000 Hours
On-Screen Display	No
Port Selection Support	Push Button
CONNECTOR(S)
Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female
3 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	2 - USB B (4 pin) Female
2 - VGA (15 pin, High Density D-Sub) Male
SOFTWARE
OS Compatibility	OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
Note	This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance
POWER
Center Tip Polarity	Positive
Input Current	0.4A
Input Voltage	110V-240V AC
Output Current	2A
Output Voltage	5 DC
Plug Type	N
Power Consumption (In Watts)	10
Power Source	AC Adapter Included
PHYSICAL CHARACTERISTICS
Cable Length	6 ft [1.8 m]
Color	Black
Enclosure Type	Steel
Product Height	1.6 in [4 cm]
Product Length	4.9 in [12.4 cm]
Product Width	2.8 in [70 mm]
Weight of Product	14.9 oz [421 g]
