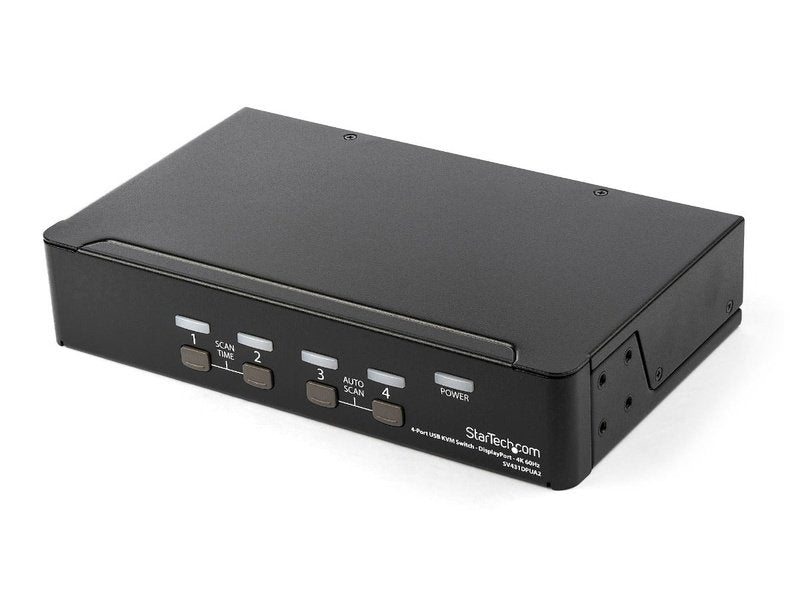

StarTech 4 Port DisplayPort KVM Switch Single Screen 4K 60HZ USB

4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant

- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor | Supports MST Passthrough for multiple displays
- TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey & Push Button | OS Independent | TAA
- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & integrated USB 2.0 Hub for sharing USB drives & devices between connected computers

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.

Applications
- High-res medical imaging
- High-res digital signage server control
- Multimedia design and production

Specifications

Brand Name
- StarTech

Product Number
- SV431DPUA2

2 - Console Interface(s)
- USB Type-A (4 pin) USB 2.0

1 - Console Interface(s)
- DisplayPort (20 pin)

2 - Console Interface(s)
- 3.5 mm Mini-Jack (3 Position)

4 - Host Connectors
- USB B (4 pin)
- DisplayPort (20 pin)

8 - Host Connectors
- 3.5 mm Mini-Jack (3 Position)

2 - Console Interface(s)
- USB Type-A (4 pin; HID Port) USB 1.1

Operating Temperature
- 0°C to 40°C (32°F to 104°F)

Storage Temperature
- -10°C to 60°C (14°F to 140°F)

Humidity
- 0% ~ 40%

U Height
- 1U

Audio
- Yes

KVM Ports
- 4

PC Interface
- USB

PC Video Type
- DisplayPort

Number of Monitors Supported
- 1

Rack-Mountable
- Optional

Cables Included
- No

Daisy-Chain
- No

4 - LED Indicators
- Red - Select indicator (One LED per port)
- Green - Online indicator (One LED per port)

1 - LED Indicators
- Power

On-Screen Display
- No

IP Control
- No

Hot-Key Selection
- Yes

Maximum Data Transfer Rate
- 480 Mbps (USB 2.0)

Maximum Digital Resolutions
- 3840 x 2160 (Ultra HD 4K) @ 60hz

Wide Screen Supported
- Yes

Auto Scan
- 3, 8, 15 & 30 seconds

Maximum Number of Users
- 1

Port Selection Support
- Push Button and Hotkeys

MTBF
- 138327 hours

Color
- Black

Material
- Steel

Product Length
- 8,7 in [22,0 cm]

Product Width
- 5,2 in [13,1 cm]

Product Height
- 1,8 in [45,0 mm]

Power Source
- AC Adapter Included

Input Voltage
- 100 - 240 AC

Input Current
- 0.6 A

Output Voltage
- 12V DC

Output Current
- 1.5 A

Center Tip Polarity
- Positive

Plug Type
- M

Power Consumption (In Watts)
- 18 W

OS Compatibility
- OS independent: No software or drivers required
