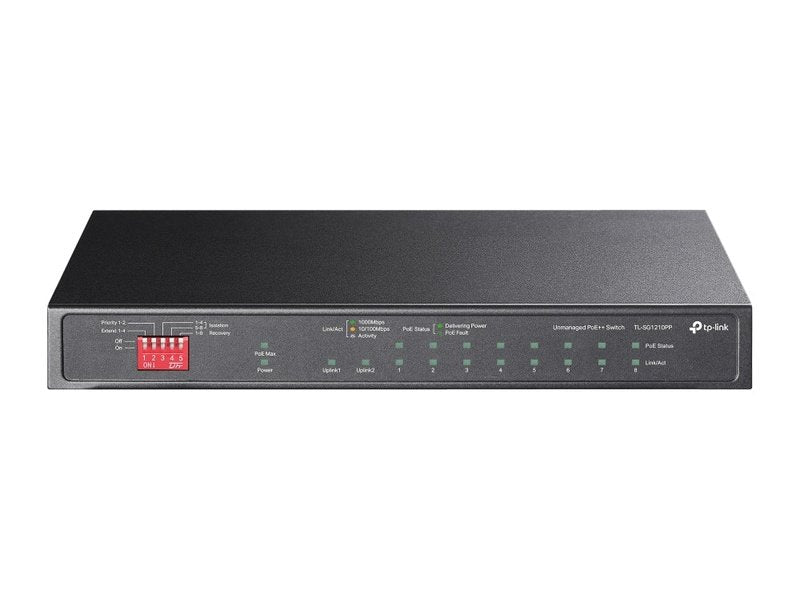

• 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
• With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
• Supports PoE Power up to 123 W for all PoE ports^*
• Plug and Play, no configuration and installation required
• Up to 250m data and power transmitting range under Extend Mode^**
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2

Extend Mode

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

Priority Mode

One-click Port Priority

Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.

Isolation Mode

Traffic Separation for Security

Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.

Recovery Mode

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Specification
