TP-Link TL-SG1005P 4-Port PoE 65W Gigabit Desktop Switch with 1-Port RJ45
SKU: TL-SG1005P
TP-Link TL-SG1005P 4-Port PoE 65W Gigabit Desktop Switch with 1-Port RJ45
TP-Link TL-SG1005P 4-Port PoE 65W Gigabit Desktop Switch with 1-Port RJ45
SKU:TL-SG1005P
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison

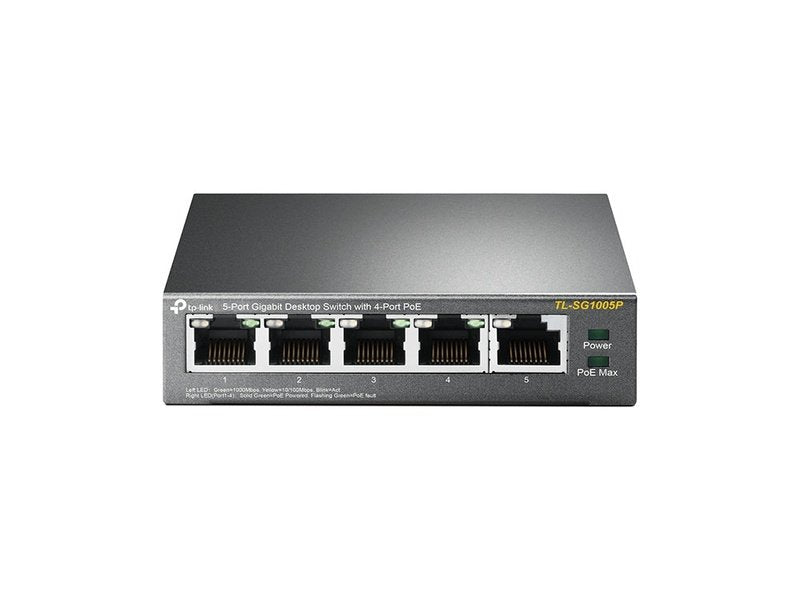

5-Port Gigabit Desktop Switch with 4-Port PoE [TL-SG1005P]
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE
TL-SG1005P
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af-compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 65W, intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.
Specifications
|
Interface |
5 10/100/1000Mbps RJ45 Ports |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
Fan Quantity |
Fanless |
|
Power Consumption |
63.31W (max. with 56w PoE device connected) |
|
External Power Supply |
External Power Adapter(Output: 48VDC / 1.25A) |
|
PoE Ports (RJ45) |
Standard: 802.3 af compliant |
|
Backbound Bandwidth |
10Gbps |
|
Mac Address Table |
2K |
|
Dimensions ( W x D x H ) |
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
|
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs |
|
Transfer Method |
Store-And-Forward |
|
Certification |
FCC, CE, RoHS |
|
Package Contents |
TL-SG1005P, Power Adapter, Installation Guide |
|
Consumption |
4.26 watts (max. no PD connected) |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
