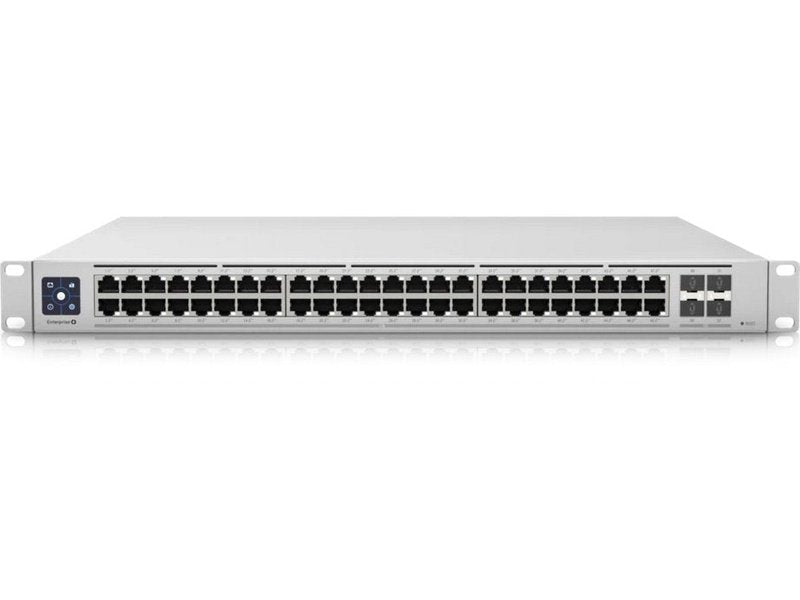

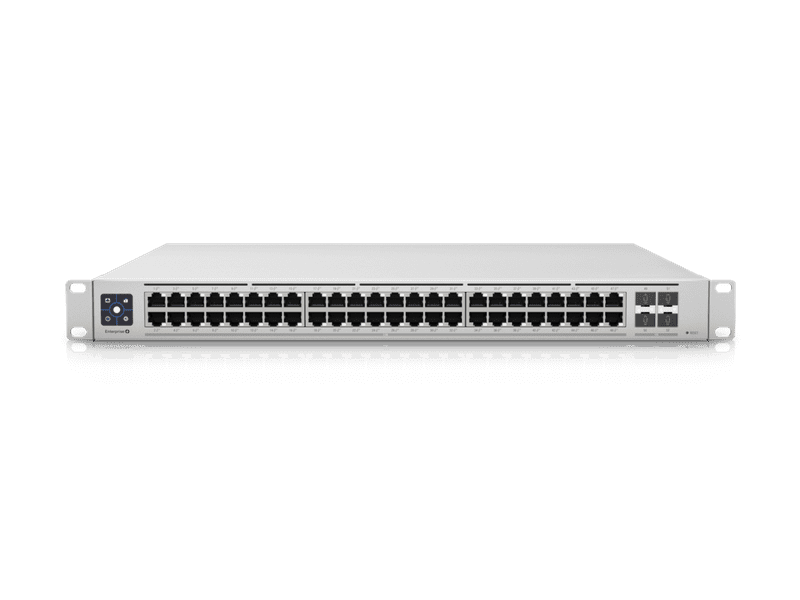

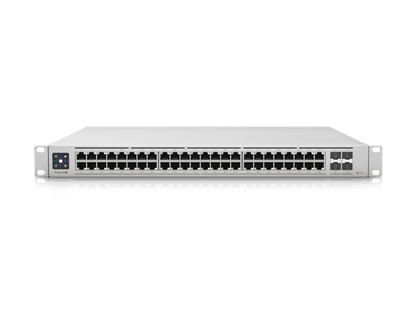

Ubiquiti UniFi USW-Enterprise-48-PoE 48 Port PoE+ 150W Managed Switch
UbiquitiSKU: USW-Enterprise-48-PoE
Ubiquiti UniFi USW-Enterprise-48-PoE 48 Port PoE+ 150W Managed Switch
UbiquitiUbiquiti UniFi USW-Enterprise-48-PoE 48 Port PoE+ 150W Managed Switch
SKU:USW-Enterprise-48-PoE
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
Ubiquiti UniFi 48 Port PoE+ 150W Budget Managed Switch [USW-Enterprise-48-PoE]
A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
- (48) 2.5 GbE PoE+ ports
- (4) 10G SFP+ ports
- 720W total PoE availability
- DC power backup-ready
- Layer 3 switching
The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate). The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
FEATURES
- 1 x 1.3" LCM color touchscreen with AR switch management
- 48 x 2.5GbE, PoE+ RJ45 ports
- 4 x 10G SFP+ ports
- 1 x USP RPS DC input
- 720W total PoE supply
- Layer 3 switching features
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7") |
| Weight | Without mounting brackets: 6.2 kg (13.67 lb) With mounting brackets: 6.3 kg (13.89 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (48) 2.5 GbE RJ45 ports |
| Management interface | Ethernet In-Band |
| SFP+ interface | (4) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 160 Gbps |
| Switching capacity | 320 Gbps |
| Forwarding rate | 238.095 Mpps |
| Max. power consumption | 150W (Excluding PoE output) |
| Power method | (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A |
| Power supply | AC/DC, internal, 100—240V, 10A Max. |
| Total available PoE | 720W |
| Max. PoE+ wattage per port by PSE | 34.2W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
| Services | SMB Layer 3 PoE GbE Switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
