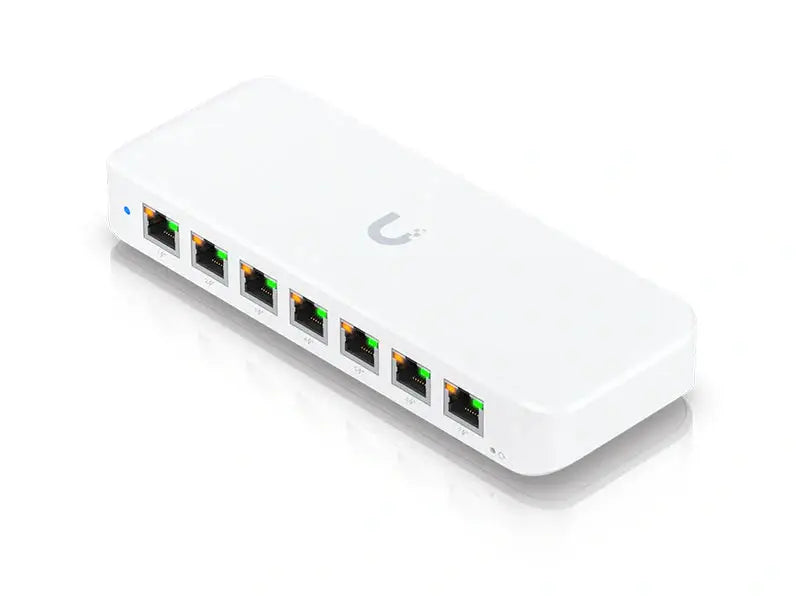

Ubiquiti USW-Ultra 8-Port Gigabit PoE+ 42W Switch
UbiquitiSKU: USW-Ultra
Ubiquiti USW-Ultra 8-Port Gigabit PoE+ 42W Switch
UbiquitiUbiquiti USW-Ultra 8-Port Gigabit PoE+ 42W Switch
SKU:USW-Ultra
Prix habituel
1 890 Dhs
Prix habituel
0 Dhs
Prix promotionnel
1 890 Dhs
Quantité
Contactez-nous
Frais d'expédition calculés à l'étape de paiement.
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
Ubiquiti Ultra 8 Port Gigabit PoE+ Switch [USW-Ultra] (42W)
Features
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
(7) GbE PoE+ output ports
(1) GbE PoE++ input port*
— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input
Specifications
| Mechanical | |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Power method | (1) 54V, 3.9A power adapter (Not included) (1) 54V, 1.1A power adapter (Not included) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W with PoE input (Excluding PoE output) 8W with AC adapter input (Excluding PoE output) |
| Total available PoE | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Ambient operating temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Link/activity |
| Application Requirements | |
| UniFi Network | Version 8.0.28 and later |
