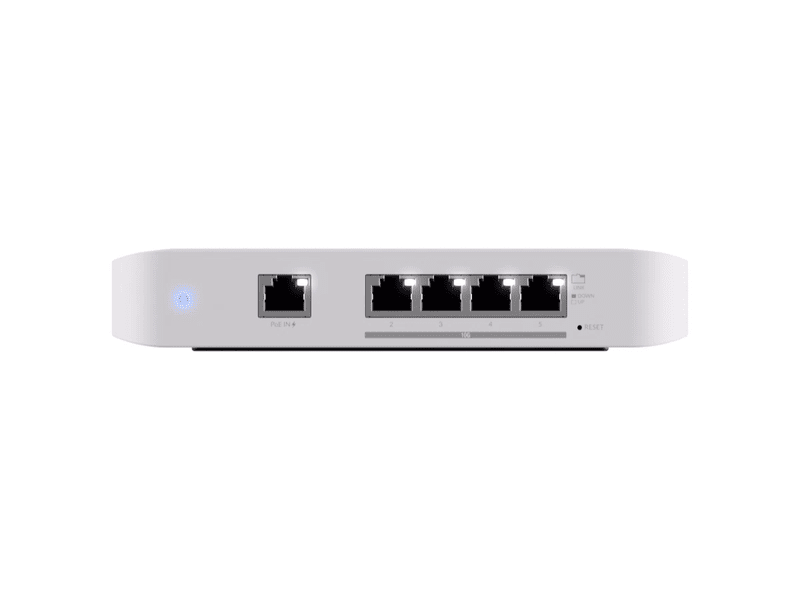

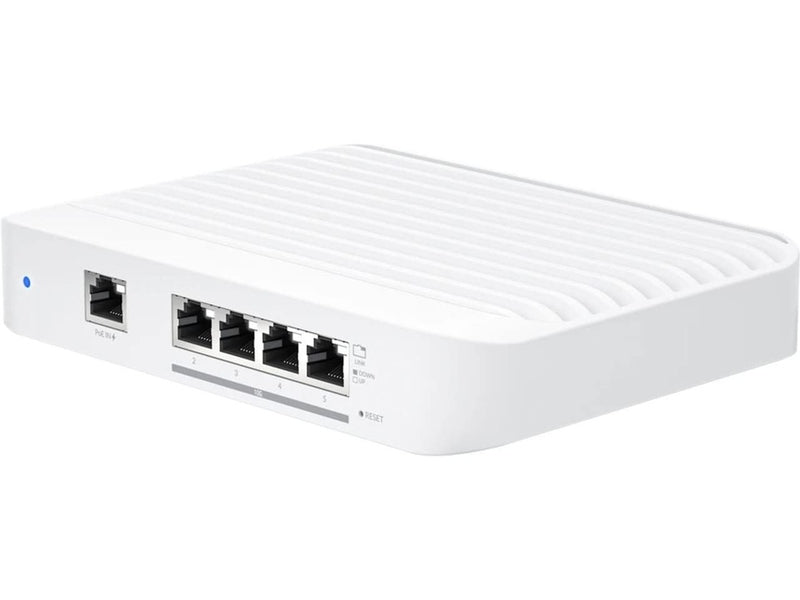

Ubiquiti UniFi Switch Flex XG Layer 2 Switch
UbiquitiSKU: USW-Flex-XG
Ubiquiti UniFi Switch Flex XG Layer 2 Switch
UbiquitiUbiquiti UniFi Switch Flex XG Layer 2 Switch
SKU:USW-Flex-XG
Prix habituel
5 576 Dhs
Prix habituel
0 Dhs
Prix promotionnel
5 576 Dhs
Quantité
Contactez-nous
Frais d'expédition calculés à l'étape de paiement.
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
Overview
Technical Specification
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
(4) 10 GbE ports
(1) GbE PoE+ input port for power
Technical Specification
| Mechanical | |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Weight | 1.2 kg (2.7 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE, PoE+ RJ45 port (4) 10 GbE RJ45 ports |
| Total non-blocking throughput | 41 Gbps |
| Switching capacity | 82 Gbps |
| Forwarding rate | 61.012 Mpps |
| Power method | (1) PoE+, 50—57V DC, 25W (1) USB Type-C, 5V DC, 5A |
| Power supply | PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included) |
| Supported voltage range | 90—264V AC (Adapter) |
| Max. power consumption | 25W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
